Rep. kit welded case exhaust gas sensors for BMW 3 Series F30 320i (2015)

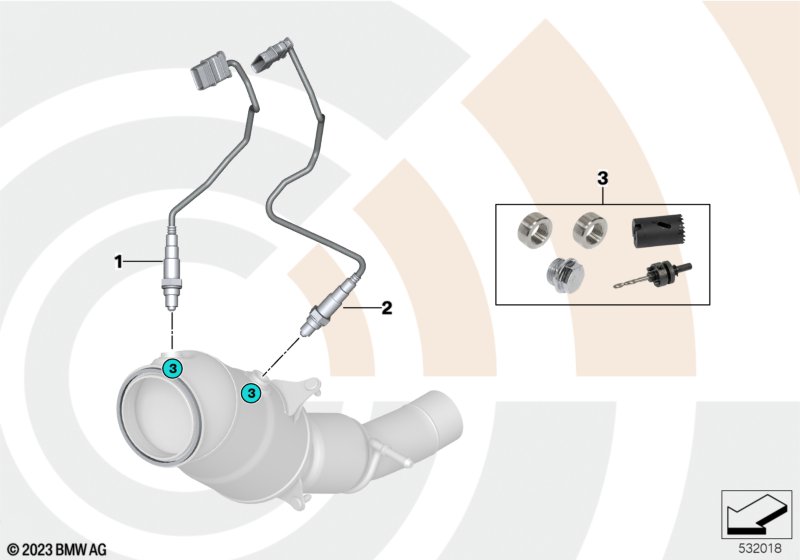

This Rep. kit welded case exhaust gas sensors technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oxygen sensor | 1 | 11787589121 | +core | Shop at ECS Tuning | |||||
| 02 | Oxygen sensor | L= 540MM | 1 | 11787589122 | +core | Shop at ECS Tuning | ||||
| VALUE REPAIR PARTS! Product significantly reduces repair costs. Primary part no longer requires replacement. |
||||||||||
| 03 | Welded case oxygen sensor | VALUE PARTS | 1 | 18305A93365 | Shop at ECS Tuning | |||||
| Observe repair manual. Do not use in cast metal! Use only for 90° installation position! Restore positioning exactly! |
||||||||||
Notes
- +core = plus core charge (possibility of a return of the old part)
