Rep. kit welded case exhaust gas sensors for BMW 1 Series F20 LCI 118d (2016)

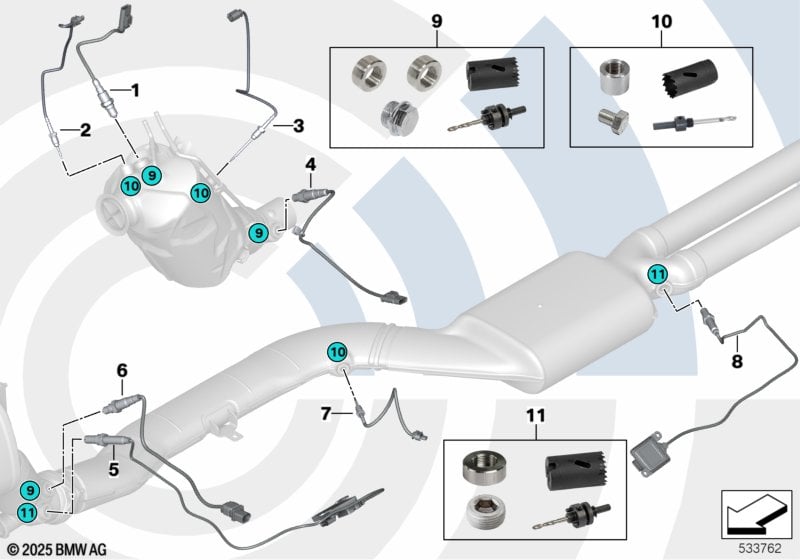

This Rep. kit welded case exhaust gas sensors technical drawing provides a detailed breakdown of the assembly for the 1 Series F20 LCI 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with EU3 exhaust emissions standard |
S169A=No |
|||||||||
| 01 | Oxygen sensor | L=330 | 1 | 13628570230 | Shop at ECS Tuning | |||||
| 02 | Temperature sensor, exhaust | L=340 | 1 | 13628589814 | Shop at ECS Tuning | |||||
| 03 | Temperature sensor, exhaust | L=332 | 1 | 13628570234 | Shop at ECS Tuning | |||||
| For vehicles with Emissions standard EU5 and EU3 exhaust emissions standard |
S161A=No S169A=No |
|||||||||
| 04 | Oxygen sensor | L=540 | 1 | 03/2018 | 13628589104 | Shop at ECS Tuning | ||||
| 05 | NOX sensor | L=915MM | 1 | 03/2018 | 13628589846 | Shop at ECS Tuning | ||||
| For vehicles with Emissions standard EU5 and Emissions standard EU6 and EU3 exhaust emissions standard |
S161A=No S164A=Yes S169A=No |
|||||||||
| 06 | Oxygen sensor | L=1020 | 1 | 13628573155 | Shop at ECS Tuning | |||||
| For vehicles with Emissions standard EU5 and EU3 exhaust emissions standard |
S161A=No S169A=No |
|||||||||
| 07 | Temperature sensor, exhaust | L=245 | 1 | 13628581103 | Shop at ECS Tuning | |||||
| 08 | Sensor for NOX | L=415MM | 1 | 03/2018 | 13628589844 | Shop at ECS Tuning | ||||
| VALUE REPAIR PARTS! Product significantly reduces repair costs. Primary part no longer requires replacement. |
||||||||||
| 09 | Welded case oxygen sensor | VALUE PARTS | 1 | 18305A93365 | Shop at ECS Tuning | |||||
| Observe repair manual. Do not use in cast metal! Use only for 90° installation position! Restore positioning exactly! |
||||||||||
| 10 | Welded case temperature sensor | VALUE PARTS | 1 | 18305A93319 | Shop at ECS Tuning | |||||
| Observe repair manual. Do not use in cast metal! Use only for 90° installation position! Restore positioning exactly! |
||||||||||
| 11 | Welded case NOx sensor | VALUE PARTS | 1 | 18305A93329 | Shop at ECS Tuning | |||||
| Observe repair manual. Do not use in cast metal! Use only for 90° installation position! Restore positioning exactly! |
||||||||||
