Exhaust system, rear for BMW 5 Series G60 Sedan 550eX (2025)

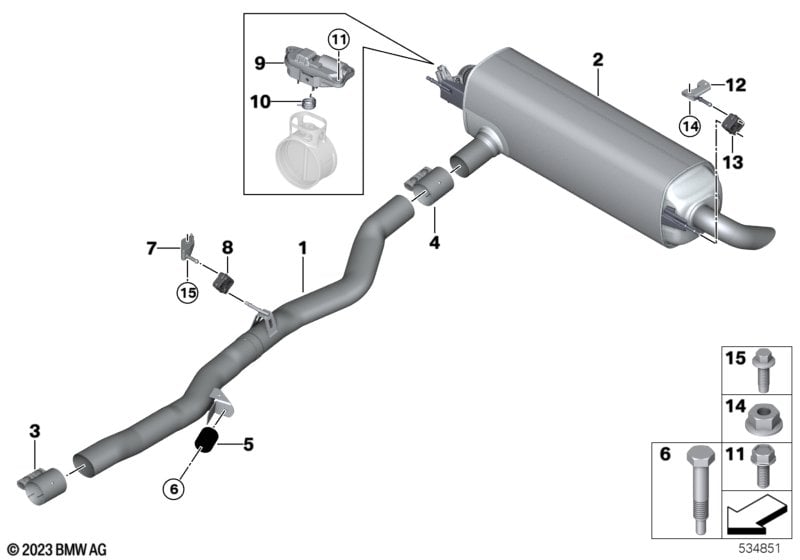

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 550eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Exhaust emission standards EU6B |
S1DAA=Yes |
|||||||||
| 01 | Intermediate pipe center | 1 | 18305A4E4F6 | Shop at ECS Tuning | ||||||
| For vehicles with Exhaust emission standards EU6B |
S1DAA=No |
|||||||||
| 01 | Intermediate pipe center | 1 | 18305A4E4F3 | Shop at ECS Tuning | ||||||
| For vehicles with Exhaust emission standards EU6B |
S1DAA=Yes |
|||||||||
| 02 | Rear silencer | 1 | 18305A35ED0 | Shop at ECS Tuning | ||||||
| For vehicles with Exhaust emission standards EU6B |
S1DAA=No |
|||||||||
| 02 | Rear silencer | 1 | 18305A4E4F4 | Shop at ECS Tuning | ||||||
| For vehicles with Exhaust emission standards EU6B |
S1DAA=Yes |
|||||||||
| 03 | Clamping bush | D=70 X 70MM | 1 | 18307560780 | $60.54 | Shop at ECS Tuning | ||||
| For vehicles with Exhaust emission standards EU6B |
S1DAA=No |
|||||||||
| 03 | Clamping bush | D=75 X 90MM | 1 | 18307560781 | $152.42 | Shop at ECS Tuning | ||||
| For vehicles with Exhaust emission standards EU6B |
S1DAA=Yes |
|||||||||
| 04 | Clamping bush | D=70 X 70MM | 1 | 18307560780 | $60.54 | Shop at ECS Tuning | ||||
| For vehicles with Exhaust emission standards EU6B |
S1DAA=No |
|||||||||
| 04 | Clamping bush | D=75 X 90MM | 1 | 18307560781 | $152.42 | Shop at ECS Tuning | ||||
| 07 | Bracket for exhaust system | RECHTS | 1 | 18307935436 | Shop at ECS Tuning | |||||
| 08 | Rubber Mounting | 1 | 18307616850 | Shop at ECS Tuning | ||||||
| 09 | Actuator drive, exhaust flap | 1 | 18305A20EA4 | Shop at ECS Tuning | ||||||
| 10 | Connection spring | 1 | 18308472303 | Shop at ECS Tuning | ||||||
| 11 | Hex bolt | M6X16 | 2 | 18308623584 | Shop at ECS Tuning | |||||
| 12 | REAR SILENCER BRACKET, front | 2 | 18308635586 | Shop at ECS Tuning | ||||||
| 13 | Swing support | 2 | 18308635587 | Shop at ECS Tuning | ||||||
| 14 | Collar nut | M8-8-SC-ZNNIV | 4 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 15 | Hex bolt | M8X25 | 1 | 18309909376 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G60 Sedan 550eX Exhaust system, rear?
- This technical diagram illustrates the Exhaust system, rear within the Exhaust system group for the 5 Series G60 Sedan 550eX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Intermediate pipe center (Part #18305A4E4F6).
- Which models use the hardware listed in this Exhaust system, rear?
- The hardware and components featured in the Exhaust system, rear are specific to the 5 Series G60 Sedan 550eX produced during 2025. These technical specifications ensure that parts like the Intermediate pipe center (18305A4E4F6) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Exhaust system, rear assembly?
- Each item in the Exhaust system, rear corresponds to the numbered list below the illustration. For the 5 Series G60 Sedan 550eX, you can identify the Intermediate pipe center by locating its position on the schematic, which then links to the official BMW part number 18305A4E4F6 for the Exhaust system section.
