Engine-side catalytic converter for BMW MINI Cabrio F67 JCW (2025)

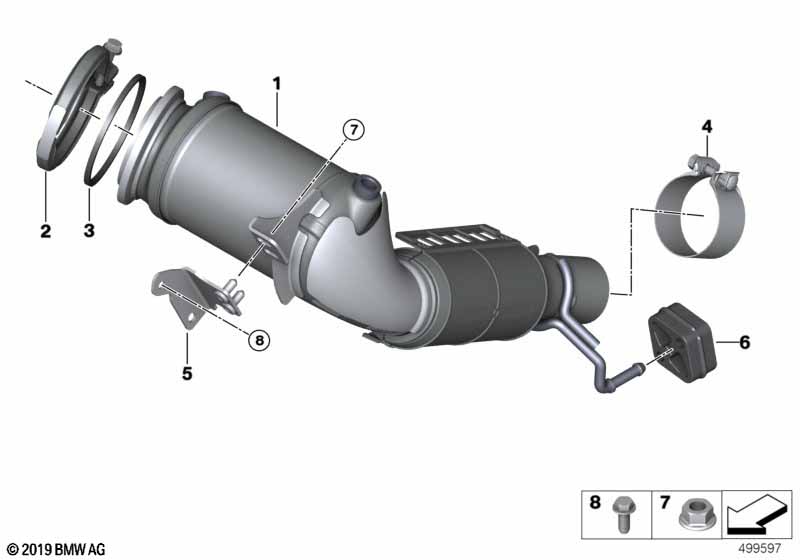

This Engine-side catalytic converter technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F67 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Exhaust technology SULEV30 PM and Exhaust technology C6B RDE and Emissions standard EU6 rde II and Emission standard BHARAT STAGE VI RDE and Exhaust emission standard JPN-WLTP 2024 and ADDITIONAL SCOPES L8 |
S1D1A=No S1DDA=No S1DFA=No S1DMA=No S1DXA=No S1DYA=No |
||||||||
| For vehicles with Exhaust technology SULEV30 PM and Exhaust technology C6B RDE and Emissions standard EU6 rde II and ADDITIONAL SCOPES L8 |
S1D1A=No S1DDA=No S1DFA=No S1DYA=No |
|||||||||
| 01 | RP catalytic conv.close to the engine | 1 | 18328645686 | Shop at ECS Tuning | ||||||
| 02 | Screw clamp | 1 | 18307606136 | Shop at ECS Tuning | ||||||
| 03 | Gasket ring | 1 | 18307581970 | Shop at ECS Tuning | ||||||
| 04 | Muffler clamp | D=70 X 37MM | 1 | 18305A22701 | Shop at ECS Tuning | |||||
| 05 | Holder catalytic converter near engine | 1 | 18329845457 | Shop at ECS Tuning | ||||||
| 06 | Rubber Mounting | 2 | 18208570671 | Shop at ECS Tuning | ||||||
| 07 | Hex nut | BM8-8-ZNS3 | 2 | 07129905095 | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M8X20-U1-8.8 | 2 | 07119904992 | $0.55 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Cabrio F67 JCW Engine-side catalytic converter?
- This technical diagram illustrates the Engine-side catalytic converter within the Exhaust system group for the MINI Cabrio F67 JCW produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the RP catalytic conv.close to the engine (Part #18328645686).
- Which models use the hardware listed in this Engine-side catalytic converter?
- The hardware and components featured in the Engine-side catalytic converter are specific to the MINI Cabrio F67 JCW produced during 2025. These technical specifications ensure that parts like the RP catalytic conv.close to the engine (18328645686) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Engine-side catalytic converter assembly?
- Each item in the Engine-side catalytic converter corresponds to the numbered list below the illustration. For the MINI Cabrio F67 JCW, you can identify the RP catalytic conv.close to the engine by locating its position on the schematic, which then links to the official BMW part number 18328645686 for the Exhaust system section.
