Gasoline particulate filter, near engine for BMW 2 Series F74 Gran Coupé 218 (2025)

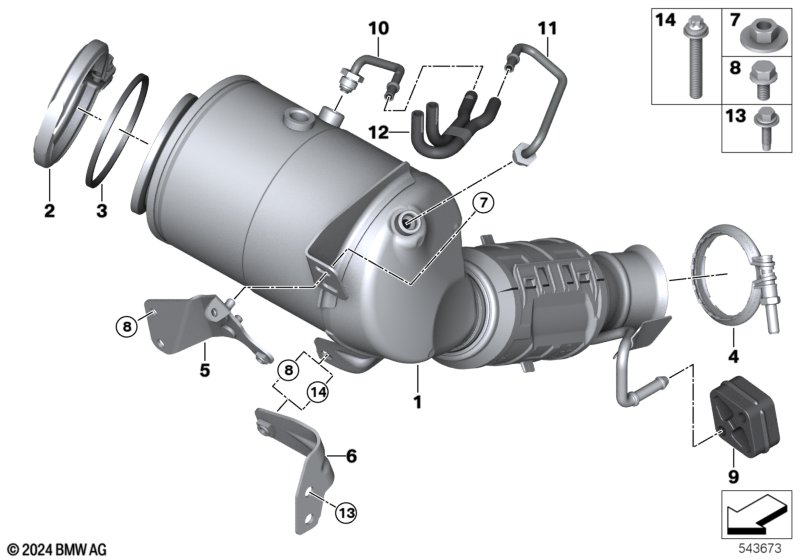

This Gasoline particulate filter, near engine technical drawing provides a detailed breakdown of the assembly for the 2 Series F74 Gran Coupé 218. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Emission standard BHARAT STAGE VI RDE or Exhaust emission standard JPN-WLTP 2024 |
S1DMA=Yes S1DXA=Yes |
|||||||||
| 01 | RP gas.particulate fltr.close to the eng | RDE2 | 1 | 18325A07646 | Shop at ECS Tuning | |||||
| 02 | Screw clamp | 1 | 18307606136 | Shop at ECS Tuning | ||||||
| 03 | Gasket ring | 1 | 18307581970 | Shop at ECS Tuning | ||||||
| 04 | Screw clamp | D=70MM | 1 | 18305A04BD6 | Shop at ECS Tuning | |||||
| 05 | Holder catalytic converter near engine | 1 | 18325A1D1E9 | Shop at ECS Tuning | ||||||
| 06 | Holder catalytic converter near engine | 1 | 18329845451 | Shop at ECS Tuning | ||||||
| 07 | Hex nut | BM8-8-ZNS3 | 2 | 07129905095 | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M8X20-U1-8.8 | 3 | 07119904992 | $0.55 | Shop at ECS Tuning | ||||
| 09 | Rubber Mounting | 2 | 18208570671 | Shop at ECS Tuning | ||||||
| 10 | Pressure line for catalytic converter | 1 | 18329845454 | Shop at ECS Tuning | ||||||
| 11 | Pressure line petrol particulate filter | 1 | 18329845455 | Shop at ECS Tuning | ||||||
| 12 | Hose | 1 | 18329845456 | Shop at ECS Tuning | ||||||
| 13 | Screw self-tapping | M8X33-10.9 ZNS3 | 2 | 31106783907 | $0.98 | Shop at ECS Tuning | ||||
