Exhaust system, rear for BMW 2 Series F74 Gran Coupé 220 (2025)

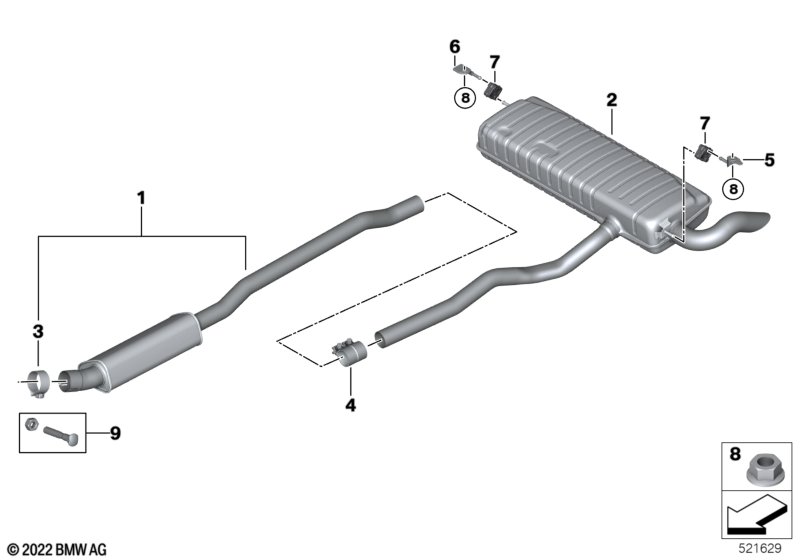

This Exhaust system, rear technical drawing provides a detailed breakdown of the assembly for the 2 Series F74 Gran Coupé 220. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Exhaust technology SULEV30 PM and Exhaust technology L8 and Exhaust emission standard JPN-WLTP 2024 and ADDITIONAL SCOPES L8 |
S1D1A=No S1DUA=No S1DXA=No S1DYA=No |
||||||||
| 01 | Front silencer with intermediate pipe | 1 | 18305A12C01 | Shop at ECS Tuning | ||||||
| 02 | Rear silencer | 1 | 18305A1D076 | Shop at ECS Tuning | ||||||
| 03 | Muffler clamp | D=70 X 37MM | 1 | 18305A22701 | Shop at ECS Tuning | |||||
| 04 | Clamping bush | D=60 X 70MM | 1 | 18307560779 | $34.61 | Shop at ECS Tuning | ||||
| 05 | Rear silencer bracket | 1 | 18305A06AB8 | Shop at ECS Tuning | ||||||
| 06 | Bracket, rear muffler right | 1 | 18305A0D905 | Shop at ECS Tuning | ||||||
| 07 | Rubber Mounting | 2 | 18307616850 | Shop at ECS Tuning | ||||||
| 08 | Hex nut | M8-ZNS3 | 2 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| 09 | Repair kit screws | 1 | 18307620661 | Shop at ECS Tuning | ||||||
