Clutch control for BMW 3 Series E30 325i (1990)

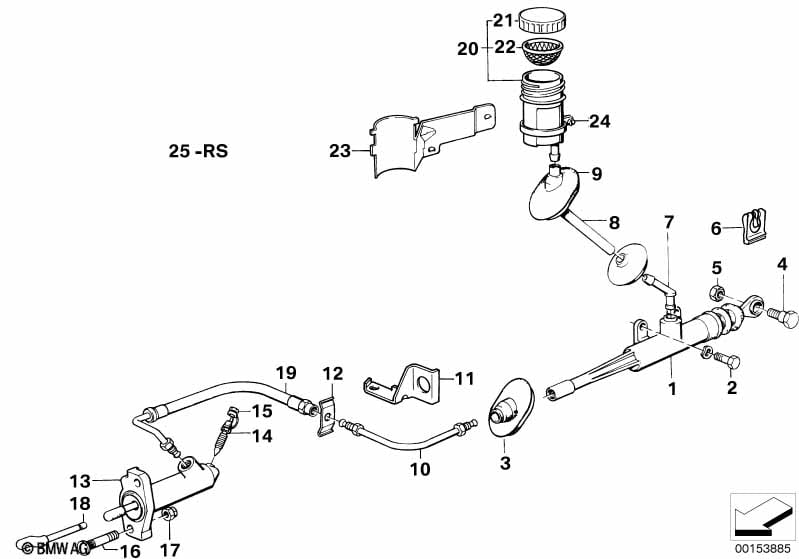

This Clutch control technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | See Service Information 210186(503) |
|||||||||
| 01 | Input cylinder clutch | D=19,05MM | 1 | 21521156000 | $203.52 | SI 210186503 | Shop at ECS Tuning | |||
| 04 | Fit bolt | 1 | 21521151447 | $2.00 | Shop at ECS Tuning | |||||
| 05 | Self-locking hex nut | M8 | 1 | 07129946400 | $0.35 | ENDED | Shop at ECS Tuning | |||
| 05 | Self-locking hex nut | M8-8-ZNNI SI | 1 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 07 | Connector | 1 | 21521151697 | $7.38 | Shop at ECS Tuning | |||||
| 08 | Hose | 7.5X13.5 | X | 35006857512 | Shop at ECS Tuning | |||||
| 09 | Grommet | 1 | 02/1994 | 21521156082 | $1.47 | ENDED | Shop at ECS Tuning | |||
| 10 | Pipe | M10/M10-260MM | 1 | 34326755555 | $5.83 | Shop at ECS Tuning | ||||
| 12 | Clip | 1 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 13 | Clutch slave cylinder | D=20,64MM | 1 | 21521157212 | Shop at ECS Tuning | |||||
| 14 | Vent screw | 1 | 21521116360 | $6.32 | Shop at ECS Tuning | |||||
| 15 | Protection cap | 1 | 21521154976 | $3.52 | Shop at ECS Tuning | |||||
| 16 | Knurled bolt | 2 | 21511203012 | $2.18 | Shop at ECS Tuning | |||||
| 17 | Self-locking hex nut | M8-8-ZNNIV SI | 2 | 07129905767 | $0.27 | ENDED | Shop at ECS Tuning | |||
| 17 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 18 | Thrust adapter | ATE | 1 | 21521113878 | $5.32 | ENDED | Shop at ECS Tuning | |||
| 18 | Thrust adapter | FAG | 1 | 21521116359 | $18.40 | Shop at ECS Tuning | ||||
| 19 | Pressure hose assy.clutch | 1 | 21521153513 | $38.53 | Shop at ECS Tuning | |||||
| 25 | Repair kit output cylinder clutch | ATE | 1 | 21521113875 | $26.30 | Shop at ECS Tuning | ||||
| 25 | Repair kit output cylinder clutch | FAG | 1 | 05/1986 | 21521157655 | $28.40 | Shop at ECS Tuning | |||
Notes
- SI = Service Information
- ENDED = the part has been discontinued (no longer available).
