Clutch for BMW 2500-3.3Li 2800 (1971)

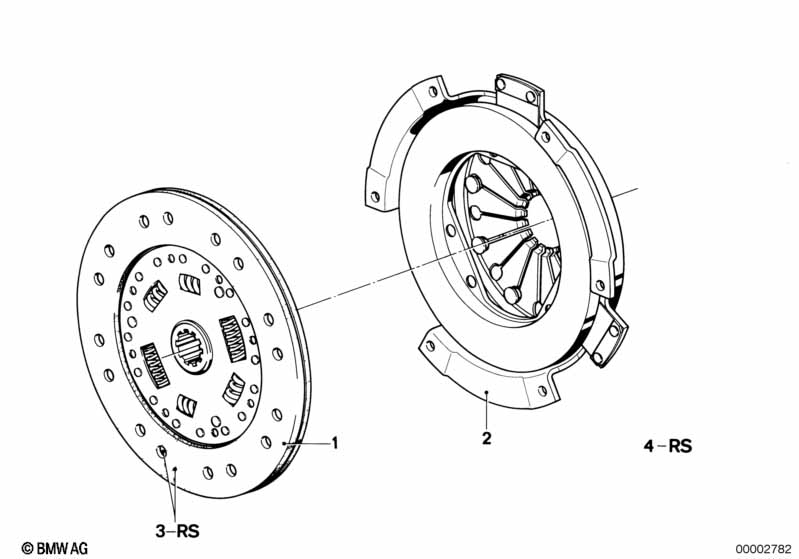

This Clutch technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | AT-clutch disk asbestos-free | D=240MM | 1 | 21211223120 | $138.38 | ENDED | Shop at ECS Tuning | |||
| 01 | Clutch disk asbestos-free | D=240MM | 1 | 08/1968 | 02/1977 | 21211223125 | $247.20 | Shop at ECS Tuning | ||
| 02 | Pressure plate | D=240MM | 1 | 21211225584 | $292.21 | Shop at ECS Tuning | ||||
| 02 | Set of clutch parts asbestos-free | D=240MM | 1 | 12/1968 | 02/1977 | 21219069010 | $732.79 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2800 Clutch?
- This technical diagram illustrates the Clutch within the Clutch group for the 2500-3.3Li 2800 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the AT-clutch disk asbestos-free (Part #21211223120).
- Which models use the hardware listed in this Clutch?
- The hardware and components featured in the Clutch are specific to the 2500-3.3Li 2800 produced during 1971. These technical specifications ensure that parts like the AT-clutch disk asbestos-free (21211223120) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Clutch assembly?
- Each item in the Clutch corresponds to the numbered list below the illustration. For the 2500-3.3Li 2800, you can identify the AT-clutch disk asbestos-free by locating its position on the schematic, which then links to the official BMW part number 21211223120 for the Clutch section.
