Clutch for BMW 6 Series E24 633CSi (1984)

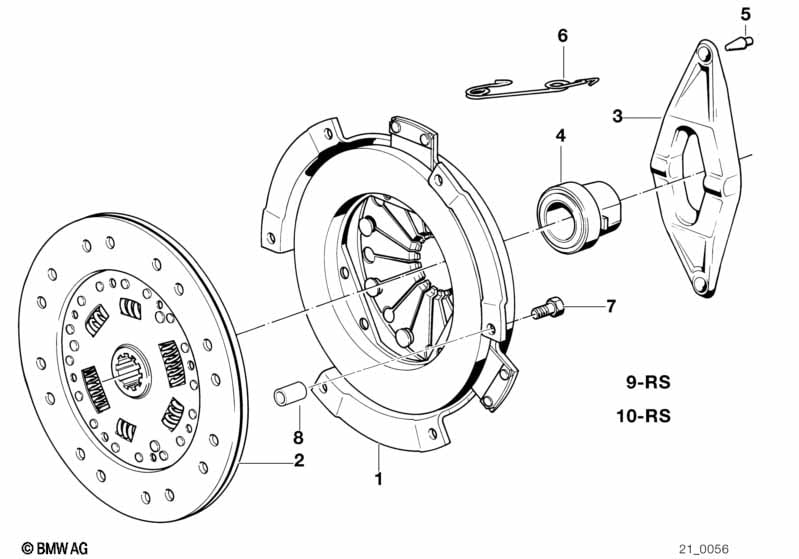

This Clutch technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pressure plate | 1 | 03/1984 | 21211225681 | Shop at ECS Tuning | |||||
| 01 | Pressure plate | D=240MM | 1 | 03/1984 | 21211225584 | $292.21 | Shop at ECS Tuning | |||
| 02 | AT-clutch disk asbestos-free | D=240MM | 1 | 03/1984 | 21211223120 | $138.38 | ENDED | Shop at ECS Tuning | ||
| 03 | Clutch rel.fork lever | 1 | 21511204229 | $14.08 | SI 210186503 | Shop at ECS Tuning | ||||
| 04 | Clutch release bearing | 1 | 21517521471 | $75.34 | Shop at ECS Tuning | |||||
| 05 | Ball pin | H=15MM | 1 | 21511202659 | $1.37 | Shop at ECS Tuning | ||||
| 06 | Spring clip | 1 | 21511204327 | $1.68 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M8X16-10.9-PHR | 6 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 10 | Set of clutch parts asbestos-free | D=240MM | 1 | 03/1984 | 21219069012 | $706.05 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
