Clutch slave cylinder for BMW 7 Series E23 728iS (1986)

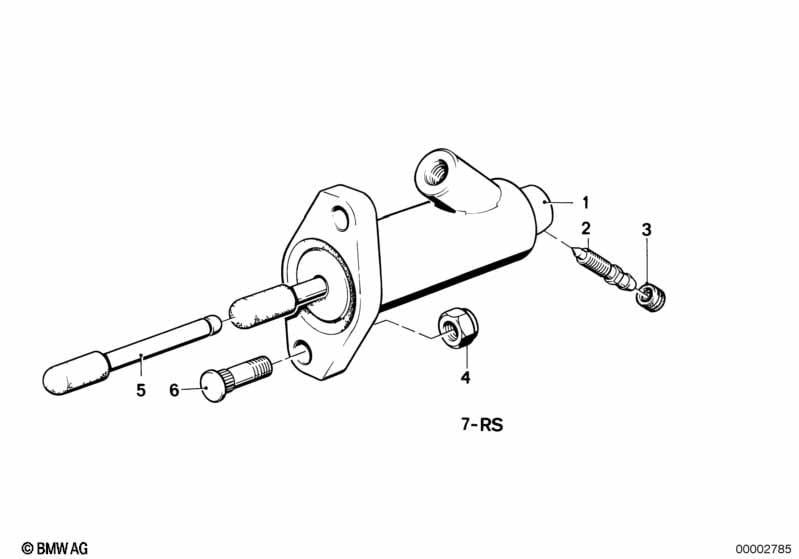

This Clutch slave cylinder technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728iS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Clutch slave cylinder | D=22,20MM | 1 | 21521114536 | $137.83 | +core | Shop at ECS Tuning | |||
| 01 | Clutch slave cylinder | D=22,20MM | 1 | 21521157346 | Shop at ECS Tuning | |||||
| 02 | Ventilation valve | 1 | 34219023168 | $8.13 | Shop at ECS Tuning | |||||
| 03 | Dust cap | 1 | 34111153198 | $6.15 | Shop at ECS Tuning | |||||
| 04 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 05 | Thrust adapter | FAG | 1 | 21521116359 | $18.40 | Shop at ECS Tuning | ||||
| 06 | Knurled bolt | 2 | 21511203012 | $2.18 | Shop at ECS Tuning | |||||
| 07 | Repair kit output cylinder clutch | ATE | 1 | 21521113880 | $18.02 | ENDED | Shop at ECS Tuning | |||
| 07 | Repair kit output cylinder clutch | FAG | 1 | 21521158849 | $30.13 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
