Input cylinder clutch for BMW 5 Series E12 518 (1976)

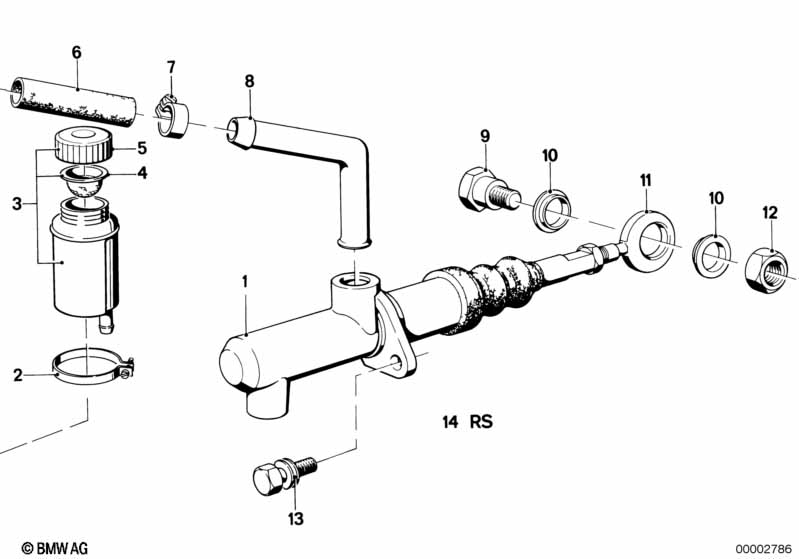

This Input cylinder clutch technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 518. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Input cylinder clutch | D=19,05MM | 1 | 06/1975 | 21521156004 | $170.92 | Shop at ECS Tuning | |||
| 06 | Hose | 7.5X13.5 | X | 35006857512 | Shop at ECS Tuning | |||||
| 07 | Hose clamp | L=9-12 | 2 | 07129952102 | $1.18 | Shop at ECS Tuning | ||||
| 08 | Connector | 1 | 34321102282 | $4.16 | Shop at ECS Tuning | |||||
| 09 | Fit bolt | 1 | 21521102721 | $3.62 | Shop at ECS Tuning | |||||
| 10 | Bushing | 2 | 35314640116 | $1.20 | Shop at ECS Tuning | |||||
| 11 | Piston rod | 1 | 21521103310 | $36.92 | Shop at ECS Tuning | |||||
| 12 | Self-locking hex nut | M10 | 1 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 13 | Hex bolt | M8X22-8.8-ZNS3 | 2 | 07119904040 | Shop at ECS Tuning | |||||
| 13 | Hex bolt | M8X18-8.8-ZNS3 | 2 | 07119904146 | $0.65 | Shop at ECS Tuning | ||||
| 14 | Repair kit input cylinder clutch | ATE | 1 | 21521102625 | $36.39 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Input cylinder clutch | D=19,05MM | X | 21521103851 | $808.67 | ENDED | Shop at ECS Tuning | |||
| 14 | Repair kit input cylinder clutch | FAG | 1 | 21521155030 | $43.50 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Input cylinder clutch | D=19,05MM | X | 21521150782 | $184.14 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
