Clutch control for BMW 3 Series E30 320i (1989)

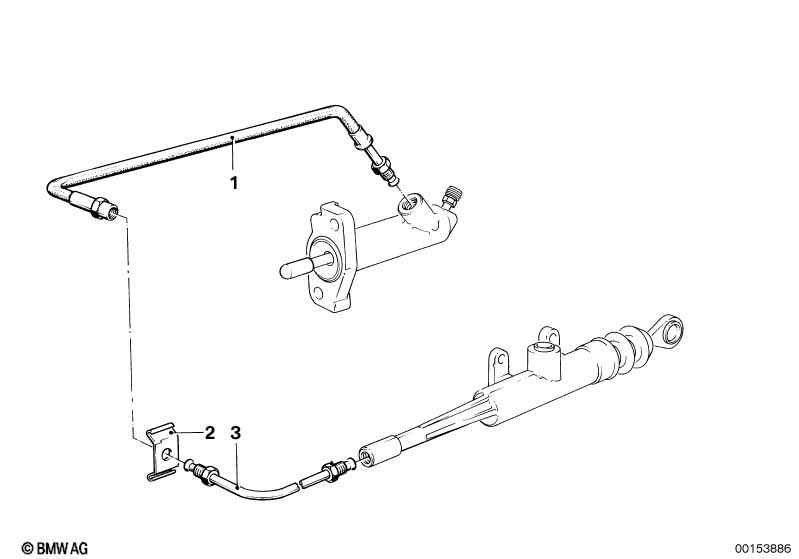

This Clutch control technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pressure hose assy.clutch | 1 | 21521153513 | $38.53 | Shop at ECS Tuning | |||||
| 02 | Clip | 1 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 03 | Pipe | 1 | 11552960094 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 320i Clutch control?
- This technical diagram illustrates the Clutch control within the Clutch group for the 3 Series E30 320i produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the Pressure hose assy.clutch (Part #21521153513).
- Which models use the hardware listed in this Clutch control?
- The hardware and components featured in the Clutch control are specific to the 3 Series E30 320i produced during 1989. These technical specifications ensure that parts like the Pressure hose assy.clutch (21521153513) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Clutch control assembly?
- Each item in the Clutch control corresponds to the numbered list below the illustration. For the 3 Series E30 320i, you can identify the Pressure hose assy.clutch by locating its position on the schematic, which then links to the official BMW part number 21521153513 for the Clutch section.
