Input cylinder clutch for BMW 6 Series E24 M6 (1988)

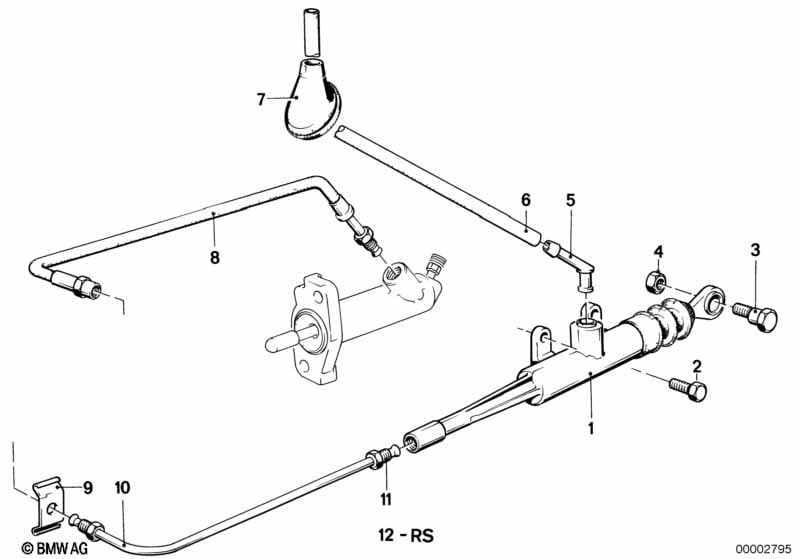

This Input cylinder clutch technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 M6. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Input cylinder clutch | D=19,05MM | 1 | 09/1982 | 21521156000 | $203.52 | SI 210186503 | Shop at ECS Tuning | ||
| 02 | Hex bolt with washer | M6X20-Z3 | 2 | 09/1982 | 07119915031 | $0.24 | Shop at ECS Tuning | |||
| 03 | Fit bolt | 1 | 09/1982 | 21521151447 | $2.00 | Shop at ECS Tuning | ||||
| 04 | Self-locking hex nut | M8-8-ZNNI SI | 1 | 09/1982 | 07129906196 | $1.60 | Shop at ECS Tuning | |||
| 05 | Connector | 1 | 09/1982 | 21521151697 | $7.38 | Shop at ECS Tuning | ||||
| 06 | Hose | 7.5X13.5 | X | 09/1982 | 35006857512 | Shop at ECS Tuning | ||||
| 07 | Grommet | 2 | 09/1982 | 21526863043 | Shop at ECS Tuning | |||||
| 08 | Pressure hose assy.clutch | 1 | 09/1982 | 21521153513 | $38.53 | Shop at ECS Tuning | ||||
| 09 | Clip | 1 | 09/1982 | 34341163565 | $0.97 | Shop at ECS Tuning | ||||
| 10 | Pipe | 1 | 09/1982 | 21521157457 | $16.70 | ENDED | Shop at ECS Tuning | |||
| 11 | Connector | M10X1 | 2 | 09/1982 | 34321151806 | $1.22 | ENDED | Shop at ECS Tuning | ||
| 12 | Repair kit output cylinder clutch | FAG | 1 | 05/1986 | 21521157655 | $28.40 | Shop at ECS Tuning |
Notes
- SI = Service Information
- ENDED = the part has been discontinued (no longer available).
