Clutch slave cylinder for BMW 3 Series E21 323i (1978)

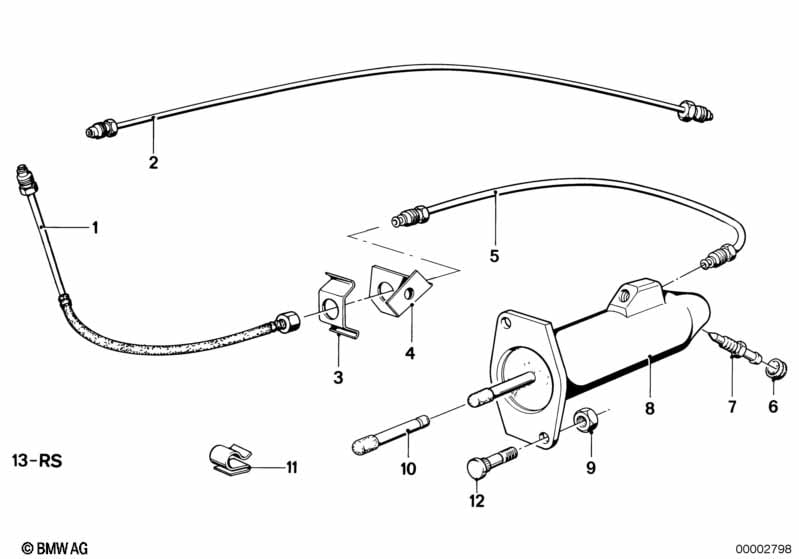

This Clutch slave cylinder technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pressure hose assy.clutch | 1 | 21521120306 | $74.64 | ENDED | Shop at ECS Tuning | ||||
| 03 | Clip | 2 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 04 | Bracket | 1 | 09/1982 | 21511120304 | ENDED | Shop at ECS Tuning | ||||
| 05 | Pipe | M10/M10-330MM | 1 | 34326755562 | $7.60 | ENDED | Shop at ECS Tuning | |||
| 06 | Kit dust cap | 1 | 21521102908 | $1.54 | ENDED | Shop at ECS Tuning | ||||
| 06 | Dust cap | 1 | 34111153198 | $6.15 | Shop at ECS Tuning | |||||
| 07 | Vent screw | 1 | 21521116360 | $6.32 | Shop at ECS Tuning | |||||
| 08 | Clutch slave cylinder | D=20,64MM | 1 | 21521157212 | Shop at ECS Tuning | |||||
| 09 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 10 | Thrust adapter | FAG | 1 | 21521116359 | $18.40 | Shop at ECS Tuning | ||||
| 11 | Cable clamp | 1 | 61131355741 | $0.41 | Shop at ECS Tuning | |||||
| 12 | Knurled bolt | 2 | 21511203012 | $2.18 | Shop at ECS Tuning | |||||
| 13 | Repair kit output cylinder clutch | ATE | 1 | 21521113875 | $26.30 | Shop at ECS Tuning | ||||
| 13 | Repair kit output cylinder clutch | FAG | 1 | 21521116357 | $24.62 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
