Clutch control for BMW 5 Series E34 520i (1990)

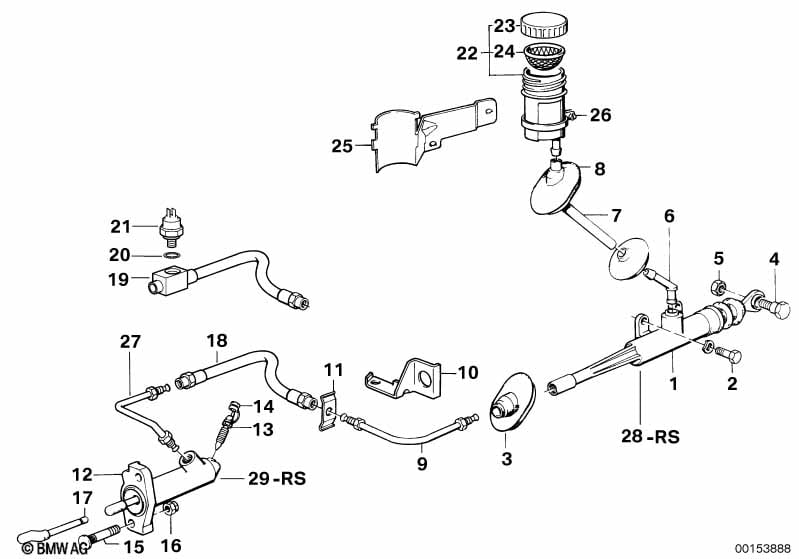

This Clutch control technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Input cylinder clutch | D=19,05MM | 1 | 21521155425 | $156.84 | SI 210190163 | Shop at ECS Tuning | |||
| 02 | Hex bolt with washer | M6X20-Z3 | 2 | 07119915031 | $0.24 | Shop at ECS Tuning | ||||
| 03 | Grommet | 1 | 21526863043 | Shop at ECS Tuning | ||||||
| 04 | Fit bolt | 1 | 21521151447 | $2.00 | Shop at ECS Tuning | |||||
| 05 | Self-locking hex nut | M8-8-ZNNI SI | 1 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 06 | Connector | 1 | 21521151697 | $7.38 | Shop at ECS Tuning | |||||
| 07 | Hose | 7.5X13.5 | X | 35006857512 | Shop at ECS Tuning | |||||
| 08 | Grommet | 1 | 21526771100 | $1.37 | Shop at ECS Tuning | |||||
| 09 | Pipe | 1 | 35311158873 | $18.45 | Shop at ECS Tuning | |||||
| 10 | Bracket | 1 | 21521158519 | $5.03 | Shop at ECS Tuning | |||||
| 11 | Clip | 2 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 12 | Clutch slave cylinder | D=22,20MM | 1 | 21521114536 | $137.83 | +core | Shop at ECS Tuning | |||
| 12 | Clutch slave cylinder | D=22,20MM | 1 | 21521157346 | Shop at ECS Tuning | |||||
| 13 | Vent screw | 1 | 21521116360 | $6.32 | Shop at ECS Tuning | |||||
| 14 | Protection cap | 1 | 21521154976 | $3.52 | Shop at ECS Tuning | |||||
| 15 | Knurled bolt | 2 | 21511203012 | $2.18 | Shop at ECS Tuning | |||||
| 16 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 17 | Thrust adapter | FAG | 1 | 21521116359 | $18.40 | Shop at ECS Tuning | ||||
| 18 | Pressure hose assy.clutch | 1 | 21521153512 | $90.58 | Shop at ECS Tuning | |||||
| 18 | Pressure hose assy.clutch | 1 | 32101157375 | $79.65 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Pipe | M10M/10-400MM | 1 | 21521159619 | $20.23 | Shop at ECS Tuning | ||||
| 27 | Pipe | M10/M10-400MM | 1 | 21521159354 | $20.23 | Shop at ECS Tuning | ||||
| 28 | Repair kit input cylinder clutch | FAG | 1 | 21521158144 | $63.17 | Shop at ECS Tuning | ||||
| 29 | Repair kit output cylinder clutch | ATE | 1 | 21521113880 | $18.02 | ENDED | Shop at ECS Tuning | |||
Notes
- SI = Service Information
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
