Clutch for BMW 3 Series E21 320i (1977)

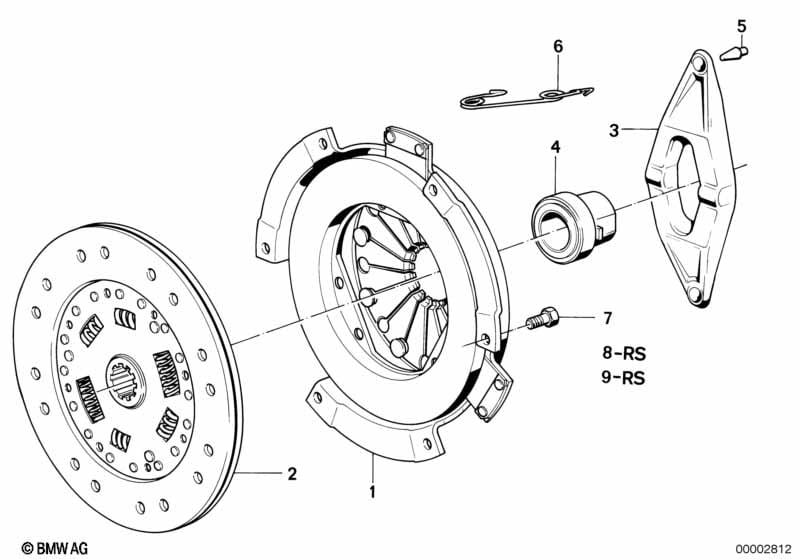

This Clutch technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pressure plate | D=228MM | 1 | 21211202033 | $393.30 | ENDED | Shop at ECS Tuning | |||
| 02 | Clutch disk asbestos-free | D=228MM | 1 | 21211223097 | $291.92 | Shop at ECS Tuning | ||||
| 02 | AT-clutch disk asbestos-free | D=228MM | 1 | 21211223174 | $197.70 | ENDED | Shop at ECS Tuning | |||
| 03 | Clutch rel.fork lever | 1 | 21511204229 | $14.08 | SI 210186503 | Shop at ECS Tuning | ||||
| 04 | Clutch release bearing | H=30MM | 1 | 21511204525 | $113.18 | Shop at ECS Tuning | ||||
| 05 | Ball pin | H=15MM | 1 | 21511202659 | $1.37 | Shop at ECS Tuning | ||||
| 06 | Spring clip | 1 | 21511204327 | $1.68 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M8X16-10.9-PHR | 6 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 09 | Set of clutch parts asbestos-free | D=228MM | 1 | 21201225383 | $549.05 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
