Release bearing for BMW 1502-2002tii 1502 (1977)

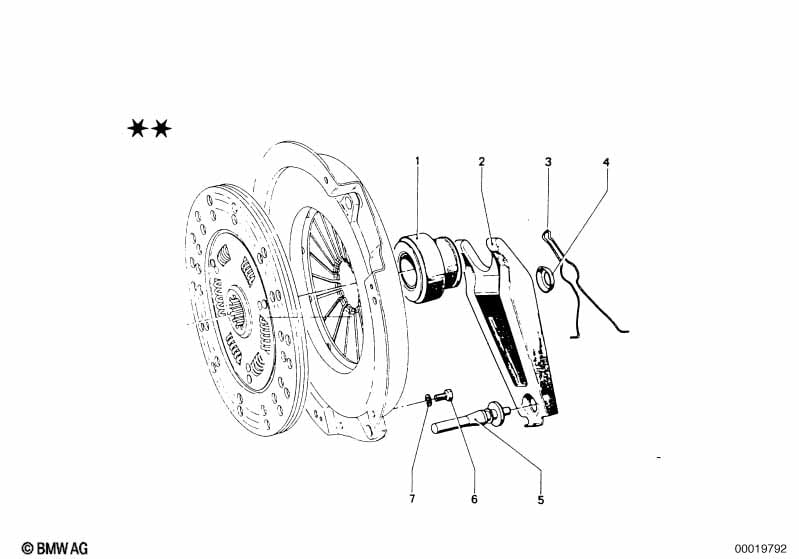

This Release bearing technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1502. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Clutch release bearing | 38X67 H=42,5 | 1 | 09/1973 | 21511204225 | $91.89 | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | AT-pressure plate | X | 09/1973 | 21219056399 | $872.98 | ENDED | Shop at ECS Tuning | |||
| 02 | Clutch rel.fork lever | 1 | 21511202647 | $113.88 | Shop at ECS Tuning | |||||
| 03 | Spring | 1 | 21510670065 | $4.00 | ENDED | Shop at ECS Tuning | ||||
| 04 | Gasket ring | 1 | 21510670070 | $3.16 | ENDED | Shop at ECS Tuning | ||||
| 05 | Rod | 1 | 21521102079 | $53.87 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M8X16-10.9-PHR | 6 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 07 | Spring washer | B8 | 6 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 1502 Release bearing?
- This technical diagram illustrates the Release bearing within the Clutch group for the 1502-2002tii 1502 produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Clutch release bearing (Part #21511204225).
- Which models use the hardware listed in this Release bearing?
- The hardware and components featured in the Release bearing are specific to the 1502-2002tii 1502 produced during 1977. These technical specifications ensure that parts like the Clutch release bearing (21511204225) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Release bearing assembly?
- Each item in the Release bearing corresponds to the numbered list below the illustration. For the 1502-2002tii 1502, you can identify the Clutch release bearing by locating its position on the schematic, which then links to the official BMW part number 21511204225 for the Clutch section.
