Clutch control for BMW 1502-2002tii 1602 (1975)

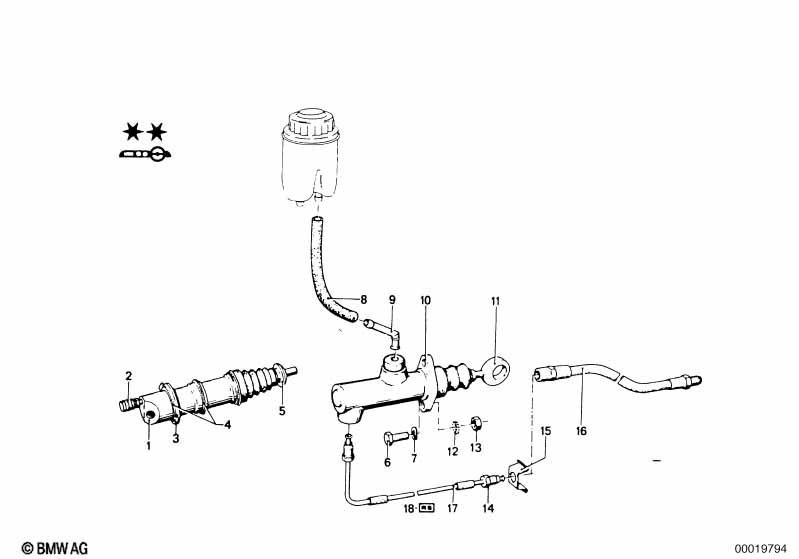

This Clutch control technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.

Clutch control
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Clutch slave cylinder D=20,64MM ATE 1 21521102061 Shop at ECS Tuning
Fg-> 1551770 / 1600-2 Rl
Fg-> 1651035 / 2002 Rl
02 Dust cap 1 34111153198 $6.15 Shop at ECS Tuning
Fg-> 1551770 / 1600-2 Rl
Fg-> 1651035 / 2002 Rl
03 Bracket 1 21521103489 ENDED Shop at ECS Tuning
Fg-> 1551770 / 1600-2 Rl
Fg-> 1651035 / 2002 Rl
04 Lock Ring 28X1,5 2 07119907340 Shop at ECS Tuning
Fg-> 1551770 / 1600-2 Rl
Fg-> 1651035 / 2002 Rl
05 Rod 1 04/1967 12/1976 21521103602 ENDED Shop at ECS Tuning
Fg-> 1551770 / 1600-2 Rl
Fg-> 1651035 / 2002 Rl
06 Hex bolt M8X22-8.8-ZNS3 2 07119904040 Shop at ECS Tuning
Fg-> 1551770 / 1600-2 Rl
Fg-> 1651035 / 2002 Rl
07 Wave washer 8,4X15-ZNS3 2 07119904115 $0.09 Shop at ECS Tuning
Fg-> 1551770 / 1600-2 Rl
Fg-> 1651035 / 2002 Rl
08 Hose 7.5X13.5 X 35006857512 Shop at ECS Tuning
Fg-> 1551770 / 1600-2 Rl
Fg-> 1651035 / 2002 Rl
09 Connector 1 34321102282 $4.16 Shop at ECS Tuning
Fg-> 1551770 / 1600-2 Rl
Fg-> 1651035 / 2002 Rl
10 Input cylinder clutch D=19,05MM 1 21521100386 Shop at ECS Tuning
Fg-> 1551770 / 1600-2 Rl
Fg-> 1651035 / 2002 Rl
11 Piston rod 1 21524648136 $63.89 ENDED Shop at ECS Tuning
Fg-> 1551770 / 1600-2 Rl
Fg-> 1651035 / 2002 Rl
12 Tooth washer J8,2 2 07119936207 $0.07 Shop at ECS Tuning
Fg-> 1551770 / 1600-2 Rl
Fg-> 1651035 / 2002 Rl
13 Hex nut M8-8-ZNNIV SI 2 07119905515 $0.16 Shop at ECS Tuning
Fg-> 1551770 / 1600-2 Rl
Fg-> 1651035 / 2002 Rl
14 Connector M10X1 2 34321151806 $1.22 ENDED Shop at ECS Tuning
Fg-> 1551770 / 1600-2 Rl
Fg-> 1651035 / 2002 Rl
15 Clip 1 34341163565 $0.97 Shop at ECS Tuning
Fg-> 1551770 / 1600-2 Rl
Fg-> 1651035 / 2002 Rl
16 Pressure hose assy.clutch 1 21521113424 $23.72 ENDED Shop at ECS Tuning
Fg-> 1551770 / 1600-2 Rl
Fg-> 1651035 / 2002 Rl
17 Pipe M10/M10-751MM 1 34326755591 $8.65 Shop at ECS Tuning
Fg-> 1551770 / 1600-2 Rl
Fg-> 1651035 / 2002 Rl
18 Repair kit output cylinder clutch D=20,64 ATE 1 21521103197 $48.33 ENDED Shop at ECS Tuning
Fg-> 1551770 / 1600-2 Rl
Fg-> 1651035 / 2002 Rl
18 Repair kit output cylinder clutch D=20,64 FAG 1 21521103198 $25.39 ENDED Shop at ECS Tuning
Fg-> 1551770 / 1600-2 Rl
Fg-> 1651035 / 2002 Rl
Notes
