Clutch bell housing for BMW 2.5CS-3.0CSL 2.5CS

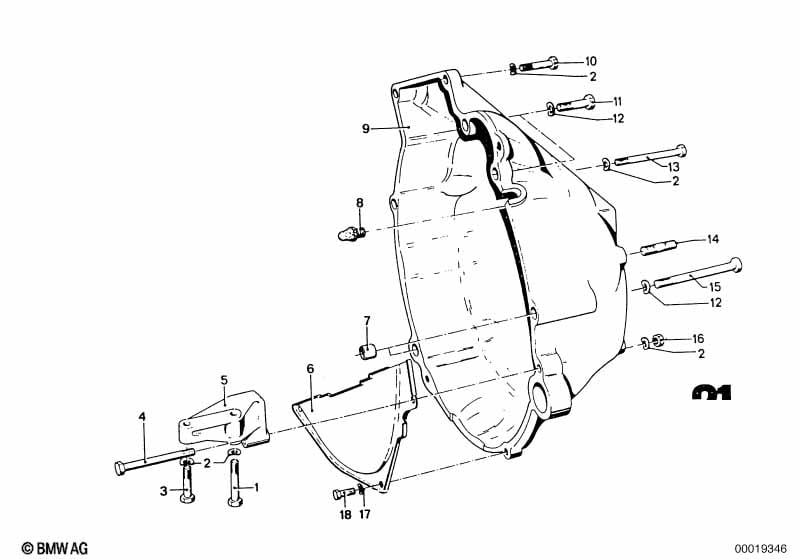

This Clutch bell housing technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 2.5CS. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Wave washer | 8,4X15-ZNS3 | 6 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M8X40-ZNNIV SI | 1 | 04/1971 | 11/1975 | 07119905549 | $1.05 | Shop at ECS Tuning | ||
| 06 | Covering plate | 1 | 21111250804 | $6.13 | Shop at ECS Tuning | |||||
| 07 | Dowel | D=14,5/12,6MM | 2 | 23111606156 | $2.18 | Shop at ECS Tuning | ||||
| 08 | Ball pin | H=15MM | 1 | 10/1973 | 11/1975 | 21511202659 | $1.37 | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Clutch housing | 1 | 10/1973 | 11/1975 | 21111225493 | $311.39 | ENDED | Shop at ECS Tuning | ||
| Late version | ||||||||||
| 09 | Clutch housing | 1 | 10/1973 | 11/1975 | 21111225493 | $311.39 | ENDED | Shop at ECS Tuning | ||
| 10 | Hex bolt | M8X35 | 2 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M10X35 | 2 | 07119913843 | $0.40 | Shop at ECS Tuning | ||||
| 12 | Wave washer | B10-ZNS3 | 4 | 07119904463 | Shop at ECS Tuning | |||||
| 13 | Hex bolt | M8X90-8.8-ZNS | 1 | 07119912471 | $2.80 | Shop at ECS Tuning | ||||
| 14 | Stud bolt | M12X35 | 4 | 07119908431 | ENDED | Shop at ECS Tuning | ||||
| 15 | Hex bolt | M10X95 | 2 | 07119912697 | ENDED | Shop at ECS Tuning | ||||
| 16 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 18 | Hex bolt | M6X16-8.8-ZNS3 | 1 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2.5CS-3.0CSL 2.5CS Clutch bell housing?
- This technical diagram illustrates the Clutch bell housing within the Manual Transmission group for the 2.5CS-3.0CSL 2.5CS. It provides a detailed exploded view of the components, identifying key parts such as the Wave washer (Part #07119904115).
- Which models use the hardware listed in this Clutch bell housing?
- The hardware and components featured in the Clutch bell housing are specific to the 2.5CS-3.0CSL 2.5CS. These technical specifications ensure that parts like the Wave washer (07119904115) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Clutch bell housing assembly?
- Each item in the Clutch bell housing corresponds to the numbered list below the illustration. For the 2.5CS-3.0CSL 2.5CS, you can identify the Wave washer by locating its position on the schematic, which then links to the official BMW part number 07119904115 for the Manual Transmission section.
