Clutch housing for BMW 2500-3.3Li 3.0S (1972)

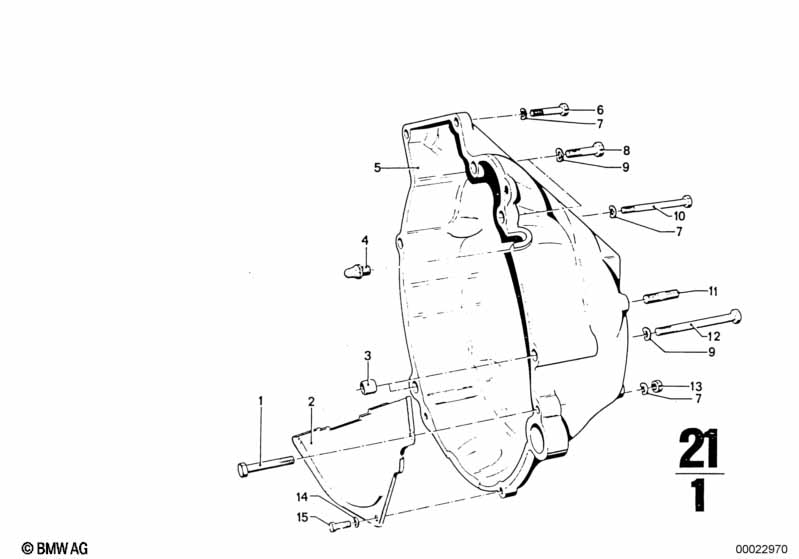

This Clutch housing technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1972.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex bolt | M8X40-ZNNIV SI | 1 | 08/1968 | 02/1977 | 07119905549 | $1.05 | Shop at ECS Tuning | ||
| 01 | Hex bolt | M8X65 | 1 | 08/1968 | 02/1977 | 41117006311 | $6.28 | Shop at ECS Tuning | ||
| 02 | Covering plate | 1 | 21111250804 | $6.13 | Shop at ECS Tuning | |||||
| 03 | Dowel | D=14,5/12,6MM | 2 | 23111606156 | $2.18 | Shop at ECS Tuning | ||||
| 05 | Clutch housing | 1 | 08/1968 | 09/1973 | 21111200212 | ENDED | Shop at ECS Tuning | |||
| 06 | Hex bolt | M8X35 | 2 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Wave washer | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M10X35 | 2 | 07119913843 | $0.40 | Shop at ECS Tuning | ||||
| 09 | Wave washer | B10-ZNS3 | 4 | 07119904463 | Shop at ECS Tuning | |||||
| 10 | Hex bolt | M8X90-8.8-ZNS | 1 | 07119912471 | $2.80 | Shop at ECS Tuning | ||||
| 11 | Stud bolt | M12X35 | 4 | 07119908431 | ENDED | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M10X95 | 2 | 07119912697 | ENDED | Shop at ECS Tuning | ||||
| 13 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 15 | Hex bolt | M6X16-8.8-ZNS3 | 2 | 07119904357 | $0.36 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0S Clutch housing?
- This technical diagram illustrates the Clutch housing within the Clutch group for the 2500-3.3Li 3.0S produced during 1972. It provides a detailed exploded view of the components, identifying key parts such as the Hex bolt (Part #07119905549).
- Which models use the hardware listed in this Clutch housing?
- The hardware and components featured in the Clutch housing are specific to the 2500-3.3Li 3.0S produced during 1972. These technical specifications ensure that parts like the Hex bolt (07119905549) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Clutch housing assembly?
- Each item in the Clutch housing corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0S, you can identify the Hex bolt by locating its position on the schematic, which then links to the official BMW part number 07119905549 for the Clutch section.
