Clutch control for BMW 5 Series E39 525tds (1998)

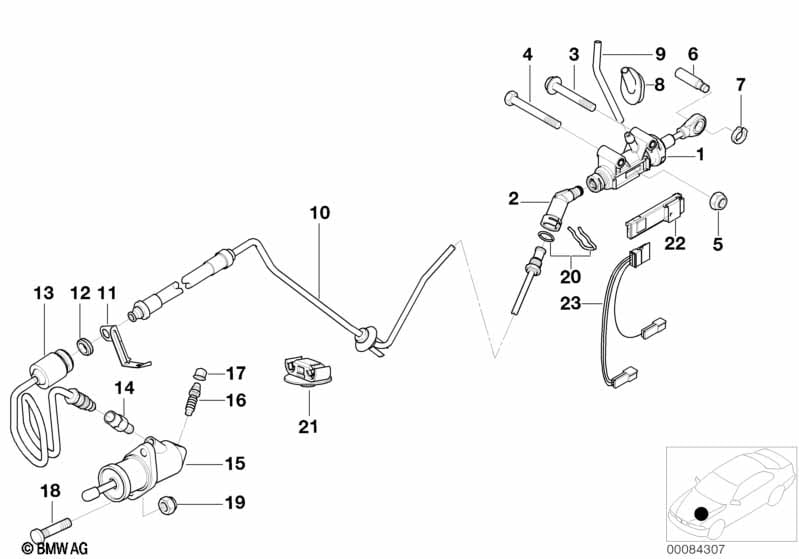

This Clutch control technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Exchangeable retrospectively | ||||||||||
| 01 | Input cylinder clutch | 1 | 09/1997 | 21526773670 | $141.70 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Adapter lead | 1 | 09/1997 | 61116911072 | $6.67 | Shop at ECS Tuning | ||||
| -- | Module, clutch switch | 1 | 09/1997 | 35426876898 | Shop at ECS Tuning | |||||
| 02 | Angle piece | 1 | 09/1997 | 21521165009 | $7.93 | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M6X45 8.8 ZNS3 | 1 | 09/1997 | 07119902976 | $0.45 | Shop at ECS Tuning | |||
| 04 | Hex bolt | M6X45 8.8 ZNS3 | 1 | 09/1997 | 07119902976 | $0.45 | Shop at ECS Tuning | |||
| 05 | Self-locking hex nut | M6 ZNNIV SI | 2 | 09/1997 | 07147575163 | $0.25 | Shop at ECS Tuning | |||
| 06 | Pin, master cylinder | D=12MM/L=61MM | 1 | 09/1997 | 21521161729 | $1.72 | Shop at ECS Tuning | |||
| 07 | Fuse | B10-ZNS3 | 1 | 09/1997 | 07129904567 | $0.40 | Shop at ECS Tuning | |||
| 08 | Grommet | 1 | 09/1997 | 21521161979 | $2.70 | Shop at ECS Tuning | ||||
| 09 | Hose | 7.5X13.5 | X | 09/1997 | 35006857512 | Shop at ECS Tuning | ||||
| 10 | Clutch line | 1 | 09/1997 | 21521164472 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Intermediate piece | M10X1 | 1 | 09/1997 | 34326757282 | $4.08 | Shop at ECS Tuning | |||
| -- | Holder | 1 | 09/1997 | 21521164303 | $2.68 | Shop at ECS Tuning | ||||
| -- | Clutch line | 1 | 09/1997 | 21521164473 | ENDED | Shop at ECS Tuning | ||||
| -- | Grommet | 1 | 09/1997 | 21521164603 | $2.93 | Shop at ECS Tuning | ||||
| -- | Holder | 1 | 09/1997 | 21521164710 | $2.98 | ENDED | Shop at ECS Tuning | |||
| 11 | Holder | 1 | 09/1997 | 21521164303 | $2.68 | Shop at ECS Tuning | ||||
| 12 | Grommet | 1 | 09/1997 | 21521164603 | $2.93 | Shop at ECS Tuning | ||||
| 13 | Pipe | 1 | 09/1997 | 21526751466 | $45.07 | Shop at ECS Tuning | ||||
| 14 | Lock valve | 1 | 09/1997 | 21521165343 | $15.72 | Shop at ECS Tuning | ||||
| 15 | Clutch slave cylinder | D=23,81MM | 1 | 09/1997 | 21521164529 | Shop at ECS Tuning | ||||
| 16 | Vent screw | 1 | 09/1997 | 21521116360 | $6.32 | Shop at ECS Tuning | ||||
| 17 | Dust cap | 1 | 09/1997 | 34111153198 | $6.15 | Shop at ECS Tuning | ||||
| 18 | Knurled bolt | 2 | 09/1997 | 21511203012 | $2.18 | Shop at ECS Tuning | ||||
| 19 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 09/1997 | 07129906196 | $1.60 | Shop at ECS Tuning | |||
| 20 | Repair kit clutch plug-in connector | 1 | 09/1997 | 21521165451 | $6.28 | Shop at ECS Tuning | ||||
| 21 | Brake pipe bracket | 2 | 09/1997 | 34301161568 | $1.48 | Shop at ECS Tuning | ||||
| For vehicles with Cruise control only applies to start lock |
S540A=Yes |
|||||||||
| 23 | Adapter lead | 1 | 09/1997 | 09/2001 | 61116911072 | $6.67 | Shop at ECS Tuning | |||
