Clutch control for BMW 5 Series E60 LCI 525i (2009)

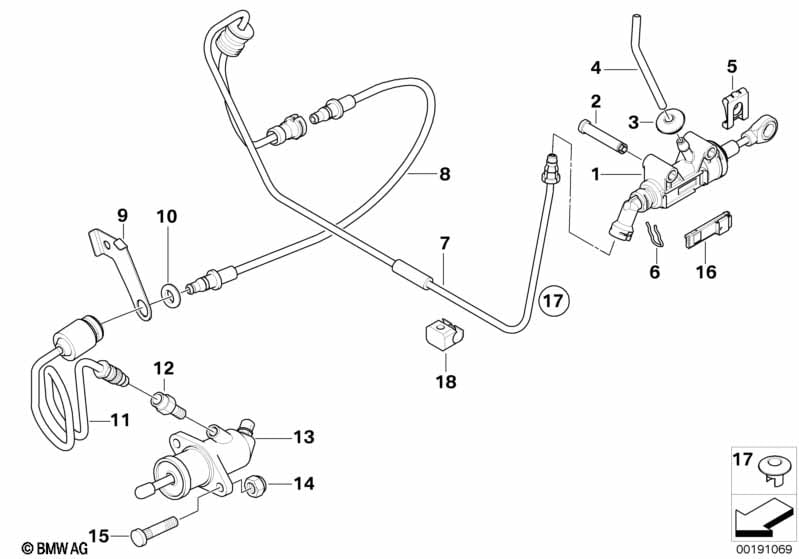

This Clutch control technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Input cylinder clutch | 1 | 21526777344 | $141.70 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Pin, master cylinder | D=9MM/L=48MM | 2 | 21526759940 | $1.37 | Shop at ECS Tuning | ||||
| 02 | Pin, master cylinder | D=9MM/L=48MM | 2 | 21526759940 | $1.37 | Shop at ECS Tuning | ||||
| 03 | Grommet | 1 | 21526771100 | $1.37 | Shop at ECS Tuning | |||||
| 04 | Hose | 7.5X13.5 | X | 35006857512 | Shop at ECS Tuning | |||||
| 05 | Fuse | B10-ZNS3 | 1 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
| 06 | Repair kit clutch plug-in connector | 1 | 21521165451 | $6.28 | Shop at ECS Tuning | |||||
| 07 | Pipe | 1 | 21526760828 | $33.50 | Shop at ECS Tuning | |||||
| 08 | Hose assy | 1 | 21526774226 | $21.38 | Shop at ECS Tuning | |||||
| 09 | Bracket, clutch line | 1 | 21526774228 | $3.25 | Shop at ECS Tuning | |||||
| 10 | Grommet | 1 | 21521164603 | $2.93 | Shop at ECS Tuning | |||||
| 11 | Pipe | 1 | 21526774282 | $19.30 | Shop at ECS Tuning | |||||
| 12 | Lock valve | 1 | 21521165343 | $15.72 | Shop at ECS Tuning | |||||
| 13 | Clutch slave cylinder | D=22,20MM | 1 | 21526775924 | $73.46 | Shop at ECS Tuning | ||||
| 14 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 15 | Knurled bolt | 2 | 21511203012 | $2.18 | Shop at ECS Tuning | |||||
| 16 | Module, clutch switch | 1 | 35426876898 | Shop at ECS Tuning | ||||||
| 17 | Grommet | 1 | 21521163894 | $1.72 | Shop at ECS Tuning | |||||
