Clutch for BMW 5 Series E60 525xi (2006)

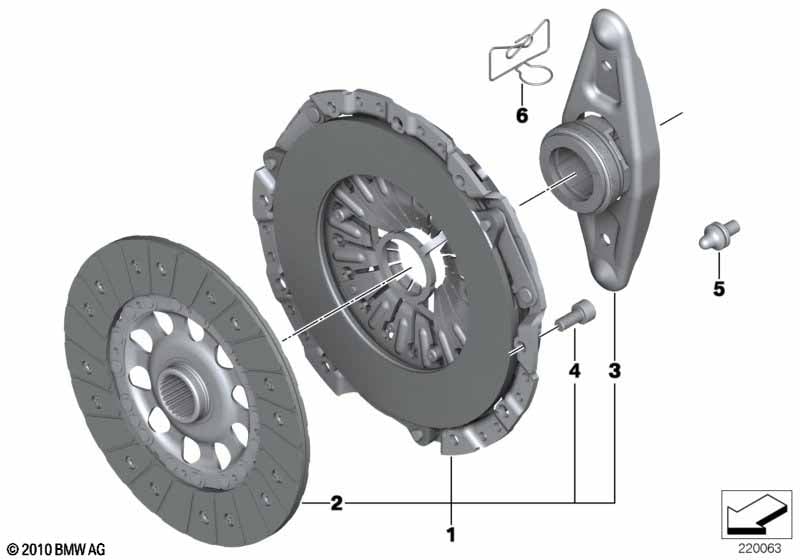

This Clutch technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Automatic transmission and Automatic transmission w/ shift paddles |
S205A=No S2TEA=No |
||||||||
| Caution! Aluminium screw only to be used 1x. Observe torque specifications. Replace all screws. |
||||||||||
| 01 | Set clutch parts | D=240MM | 1 | 21207626561 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of alu. screws manual transmission | 1 | 23000392607 | $11.78 | Shop at ECS Tuning | |||||
| 03 | Release module | 1 | 21517564027 | $75.34 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of alu. screws manual transmission | 1 | 23000392607 | $11.78 | Shop at ECS Tuning | |||||
| 04 | Fillister-head screw, micro-encapsulated | M8X18-10.9-ZNS3 | 6 | 21207548052 | $0.48 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set of alu. screws manual transmission | 6 | 23000392607 | $11.78 | Shop at ECS Tuning | |||||
| 05 | Ball pin | H=20MM | 1 | 21511223328 | $1.17 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set of alu. screws manual transmission | 1 | 23000392607 | $11.78 | Shop at ECS Tuning | |||||
| 06 | Spring clip | 1 | 21517570284 | $4.50 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of alu. screws manual transmission | 1 | 23000392607 | $11.78 | Shop at ECS Tuning | |||||
