Clutch for BMW 3 Series E36 M3 (1995)

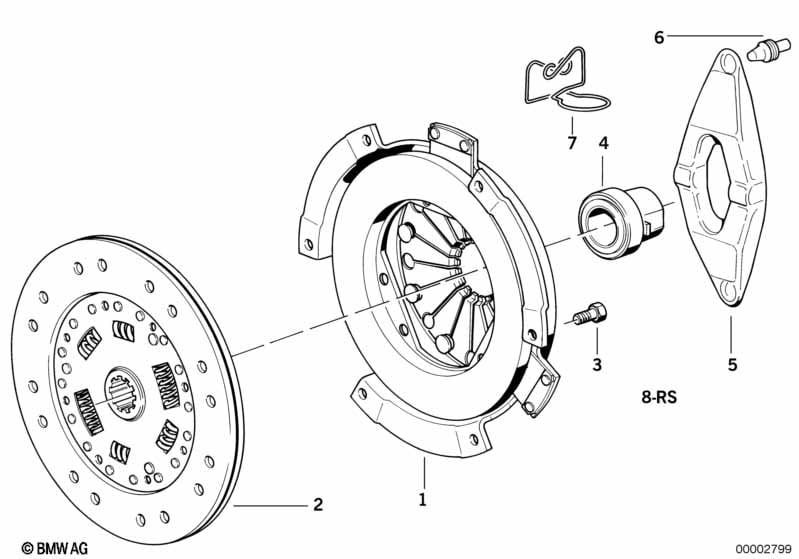

This Clutch technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Clutch plate | D=240MM | 1 | 21211223347 | $328.06 | Shop at ECS Tuning | ||||
| 02 | Clutch plate | D=240MM | 1 | 21212226958 | $218.00 | Shop at ECS Tuning | ||||
| Important! See torque figures! |
||||||||||
| 03 | Fillister-head screw | M8X16-ZNS3 MK | 6 | 07119906045 | $0.56 | Shop at ECS Tuning | ||||
| 04 | Clutch release bearing | H=25MM | 1 | 21512226729 | $75.34 | Shop at ECS Tuning | ||||
| 05 | Clutch rel.fork lever | 1 | 21511204229 | $14.08 | SI 210186503 | Shop at ECS Tuning | ||||
| 06 | Ball pin | H=20MM | 1 | 21511223328 | $1.17 | Shop at ECS Tuning | ||||
| 07 | Spring clip | 1 | 21517570284 | $4.50 | Shop at ECS Tuning | |||||
| 08 | Set exch-clutch parts twin mass flywheel | D=240MM | 1 | 21212227536 | $526.44 | ENDED | Shop at ECS Tuning | |||
Notes
- SI = Service Information
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 M3 Clutch?
- This technical diagram illustrates the Clutch within the Clutch group for the 3 Series E36 M3 produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Clutch plate (Part #21211223347).
- Which models use the hardware listed in this Clutch?
- The hardware and components featured in the Clutch are specific to the 3 Series E36 M3 produced during 1995. These technical specifications ensure that parts like the Clutch plate (21211223347) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Clutch assembly?
- Each item in the Clutch corresponds to the numbered list below the illustration. For the 3 Series E36 M3, you can identify the Clutch plate by locating its position on the schematic, which then links to the official BMW part number 21211223347 for the Clutch section.
