Gearbox mounting for BMW 5 Series E39 523i (2000)

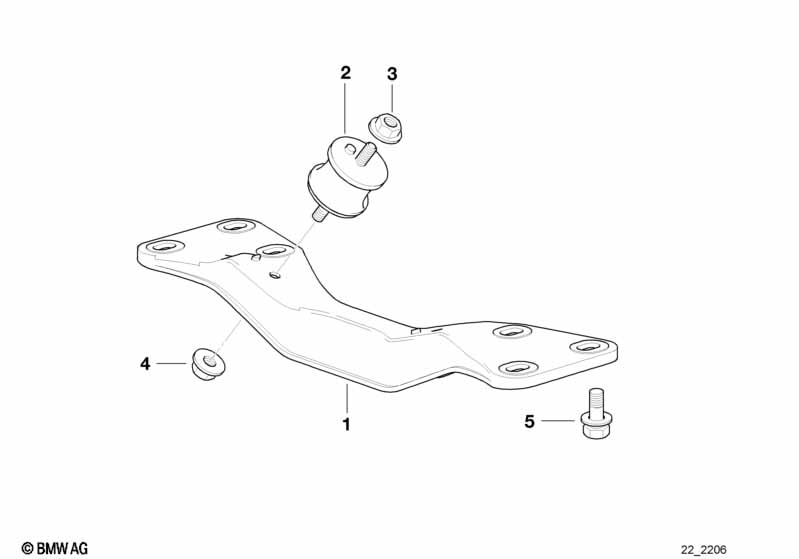

This Gearbox mounting technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Gearbox support | 1 | 22311092476 | $41.97 | ENDED | Shop at ECS Tuning | ||||
| 02 | Transmission bearing set | 2 | 22316771221 | $13.40 | +core | Shop at ECS Tuning | ||||
| 03 | Hex nut with plate | M8 | 2 | 22316760944 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Hex nut with plate | M8-ZNS3 | 2 | 07129904862 | $1.12 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M8X22-8.8-ZNS3 | 6 | 22326760945 | $1.08 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
