Engine Suspension for BMW 5 Series E39 525tds (1998)

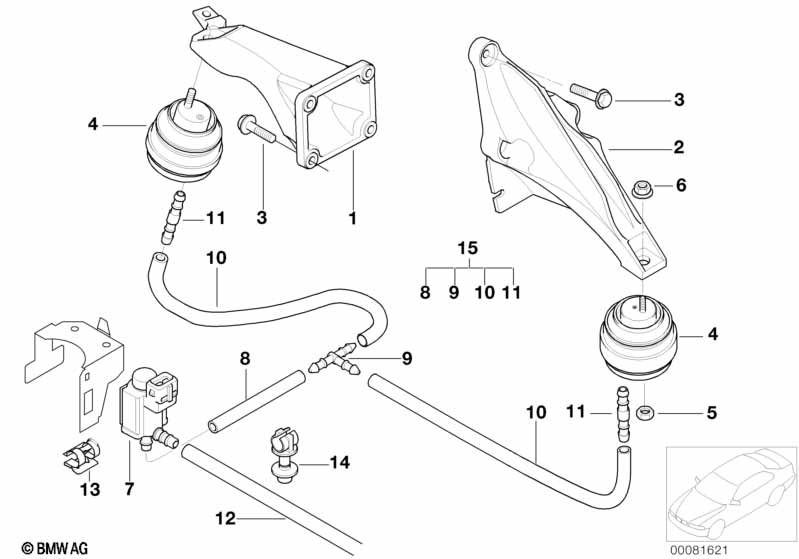

This Engine Suspension technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine support right | 1 | 22111092426 | Shop at ECS Tuning | ||||||
| 02 | Engine support, left | 1 | 22111092425 | Shop at ECS Tuning | ||||||
| 03 | Hex bolt with washer | M8X26-10.9-ZNS3 | 7 | 07119904092 | Shop at ECS Tuning | |||||
| 04 | Engine mount | 2 | 22111094248 | $111.03 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex nut | AM10-8 | 2 | 22111093584 | $0.53 | ENDED | Shop at ECS Tuning | |||
| -- | Hex nut | AM10-8-ZNS3 | 2 | 07129904864 | $0.87 | ENDED | Shop at ECS Tuning | |||
| 05 | Hex nut | M10-8-ZNS3 | 2 | 07129904048 | $1.05 | Shop at ECS Tuning | ||||
| 06 | Hex nut | AM10-10-ZNS3 | 2 | 07129904865 | $1.00 | Shop at ECS Tuning | ||||
| 07 | Electr.valve | 1 | 11747810831 | $46.70 | Shop at ECS Tuning | |||||
| 08 | Vacuum hose red | 3,3X1,8 | X | 11747797050 | $17.32 | Shop at ECS Tuning | ||||
| 09 | T-Connector | 1 | 11731261489 | $0.56 | Shop at ECS Tuning | |||||
| 10 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 11 | Connection piece | D=4MM | 2 | 11151276486 | $1.08 | Shop at ECS Tuning | ||||
| 12 | Vacuum hose red | 3,3X1,8 | X | 11747797050 | $17.32 | Shop at ECS Tuning | ||||
| 13 | Fixing clamp | 4 | 22111093424 | $0.24 | Shop at ECS Tuning | |||||
| 14 | Clip retainer | 1 | 61138368029 | $0.43 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
