Engine Suspension for BMW 5 Series E39 535i (1998)

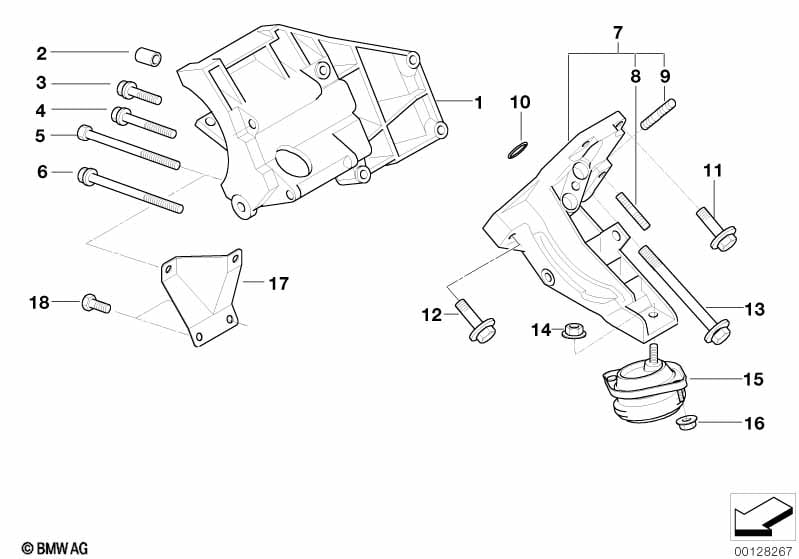

This Engine Suspension technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Automatic air conditioning |
=Yes |
|||||||||
| 01 | Climate compressor supporting bracket | 1 | 64551433562 | $83.28 | Shop at ECS Tuning | |||||
| 02 | Dowel | D=11,1MM | 2 | 11121726245 | $1.62 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M8X30-ZNNIV SI | 3 | 07119905532 | $1.25 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M8X50-U1-8.8 | 2 | 07119904504 | $1.15 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M8X110-Z1-ZNS3 | 1 | 07119903956 | Shop at ECS Tuning | |||||
| 06 | Hex bolt with washer | M8X90-U1 | 3 | 07119905392 | $1.53 | Shop at ECS Tuning | ||||
| 07 | Engine support, left | 1 | 04/1997 | 22121745739 | $67.38 | Shop at ECS Tuning | ||||
| 08 | Stud bolt | M6X28-ZN | 1 | 07129908111 | $0.63 | Shop at ECS Tuning | ||||
| 09 | Stud bolt | M8X40 | 1 | 07129903964 | Shop at ECS Tuning | |||||
| 10 | O-ring | 22X4 | 2 | 12311718712 | $1.59 | Shop at ECS Tuning | ||||
| 11 | Hex bolt with washer | M8X30-ZNNIV SI | 2 | 07119905532 | $1.25 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M8X50-U1-8.8 | 2 | 07119904504 | $1.15 | Shop at ECS Tuning | ||||
| 13 | Hex bolt with washer | M8X110-Z1-ZNS3 | 1 | 07119903956 | Shop at ECS Tuning | |||||
| 14 | Hex nut | AM10-10-ZNS3 | 2 | 07129904865 | $1.00 | Shop at ECS Tuning | ||||
| 15 | Engine mount with flange, left | 1 | 22111092823 | $92.13 | Shop at ECS Tuning | |||||
| 15 | Engine mount with flange, right | 1 | 22111092824 | $92.13 | Shop at ECS Tuning | |||||
| 16 | Hex nut with plate | M8-ZNS3 | 4 | 07129904862 | $1.12 | Shop at ECS Tuning | ||||
| 17 | Support f air cond.compress.supp.bracket | 1 | 64551432898 | $7.98 | Shop at ECS Tuning | |||||
| 18 | Hex bolt with washer | M8X20-U1-8.8 | 3 | 07119904992 | $0.55 | Shop at ECS Tuning | ||||
