Engine Suspension for BMW 5 Series E39 540i (1998)

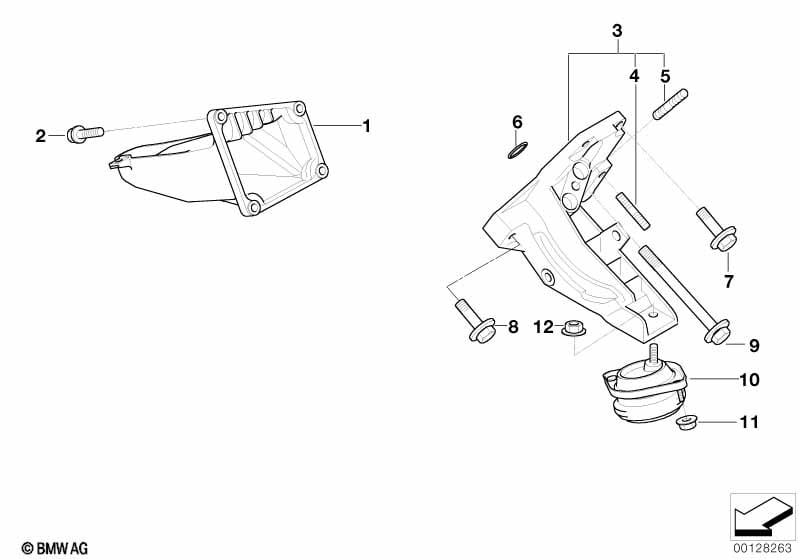

This Engine Suspension technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine support right | 1 | 09/1998 | 22111091946 | $31.87 | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M8X30-Z1-10.9 | 4 | 09/1998 | 07119904137 | $0.89 | Shop at ECS Tuning | |||
| 03 | Engine support, left | 1 | 04/1997 | 22121745739 | $67.38 | Shop at ECS Tuning | ||||
| 04 | Stud bolt | M6X28-ZN | 1 | 09/1998 | 07129908111 | $0.63 | Shop at ECS Tuning | |||
| 05 | Stud bolt | M8X40 | 1 | 09/1998 | 07129903964 | Shop at ECS Tuning | ||||
| 06 | O-ring | 22X4 | 2 | 09/1998 | 12311718712 | $1.59 | Shop at ECS Tuning | |||
| 07 | Hex bolt with washer | M8X30-ZNNIV SI | 2 | 09/1998 | 07119905532 | $1.25 | Shop at ECS Tuning | |||
| 08 | Hex bolt | M8X50-U1-8.8 | 2 | 09/1998 | 07119904504 | $1.15 | Shop at ECS Tuning | |||
| 09 | Hex bolt with washer | M8X110-Z1-ZNS3 | 1 | 09/1998 | 07119903956 | Shop at ECS Tuning | ||||
| 10 | Engine mount with flange, left | 1 | 09/1998 | 22111092823 | $92.13 | Shop at ECS Tuning | ||||
| 10 | Engine mount with flange, right | 1 | 09/1998 | 22111092824 | $92.13 | Shop at ECS Tuning | ||||
| 11 | Hex nut with plate | M8-ZNS3 | 4 | 09/1998 | 07129904862 | $1.12 | Shop at ECS Tuning | |||
| 12 | Hex nut | AM10-10-ZNS3 | 2 | 09/1998 | 07129904865 | $1.00 | Shop at ECS Tuning |
