Suspension automatic transmission for BMW 5 Series E39 535i (1998)

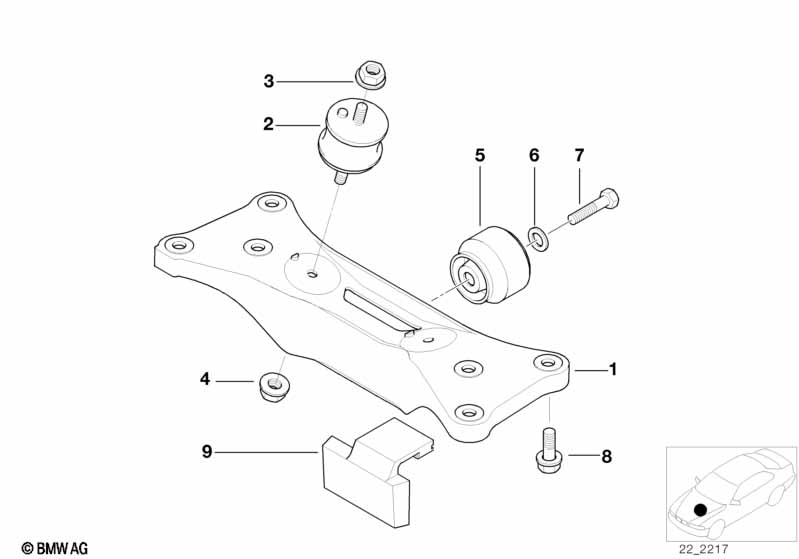

This Suspension automatic transmission technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Gearbox support | 1 | 22321094765 | $41.97 | +core | Shop at ECS Tuning | ||||
| 02 | Transmission bearing set | 2 | 22316771130 | $13.60 | +core | Shop at ECS Tuning | ||||
| 03 | Hex nut with plate | M8 | 2 | 22316760944 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Hex nut with plate | M8-ZNS3 | 2 | 07129904862 | $1.12 | Shop at ECS Tuning | ||||
| 05 | Vibration absorber | 1 | 33316770851 | $79.65 | Shop at ECS Tuning | |||||
| 06 | Washer | A13/HV-ZNS | 1 | 09/2003 | 07119901766 | $0.30 | ENDED | Shop at ECS Tuning | ||
| 06 | Washer | 12-300 HV-ZNS3 | 1 | 07119904119 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M12X1,5X70 ZNS | 1 | 07119903156 | $1.64 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M8X22-8.8-ZNS3 | 6 | 22326760945 | $1.08 | Shop at ECS Tuning | ||||
| 09 | Stop buffer | 1 | 22321094489 | $13.41 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 535i Suspension automatic transmission?
- This technical diagram illustrates the Suspension automatic transmission within the Engine and Transmission Suspension group for the 5 Series E39 535i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Gearbox support (Part #22321094765).
- Which models use the hardware listed in this Suspension automatic transmission?
- The hardware and components featured in the Suspension automatic transmission are specific to the 5 Series E39 535i produced during 1998. These technical specifications ensure that parts like the Gearbox support (22321094765) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Suspension automatic transmission assembly?
- Each item in the Suspension automatic transmission corresponds to the numbered list below the illustration. For the 5 Series E39 535i, you can identify the Gearbox support by locating its position on the schematic, which then links to the official BMW part number 22321094765 for the Engine and Transmission Suspension section.
