Engine Suspension for BMW 3 Series E46 325Ci (2003)

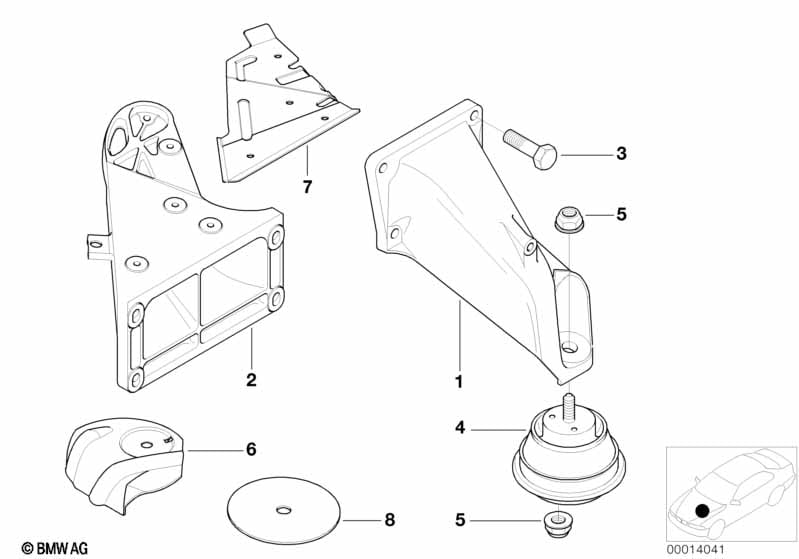

This Engine Suspension technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting bracket left | 1 | 22111094697 | $30.25 | Shop at ECS Tuning | |||||
| 02 | Supporting bracket right | 1 | 22111094694 | $35.30 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M8X34-ZA-Z1 | 8 | 03/2004 | 07119900728 | $0.62 | Shop at ECS Tuning | |||
| 04 | Engine mount | 2 | 22116779970 | $66.22 | Shop at ECS Tuning | |||||
| 05 | Flange nut | M10 | 4 | 22116779973 | $0.68 | Shop at ECS Tuning | ||||
| 06 | Heat Protection Plate Right | 1 | 22111094624 | $1.49 | Shop at ECS Tuning | |||||
| 07 | Heat resistance plate engine support | 1 | 22111094623 | $3.87 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 325Ci Engine Suspension?
- This technical diagram illustrates the Engine Suspension within the Engine and Transmission Suspension group for the 3 Series E46 325Ci produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Supporting bracket left (Part #22111094697).
- Which models use the hardware listed in this Engine Suspension?
- The hardware and components featured in the Engine Suspension are specific to the 3 Series E46 325Ci produced during 2003. These technical specifications ensure that parts like the Supporting bracket left (22111094697) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Engine Suspension assembly?
- Each item in the Engine Suspension corresponds to the numbered list below the illustration. For the 3 Series E46 325Ci, you can identify the Supporting bracket left by locating its position on the schematic, which then links to the official BMW part number 22111094697 for the Engine and Transmission Suspension section.
