Suspension automatic transmission for BMW 3 Series E46 323i (2000)

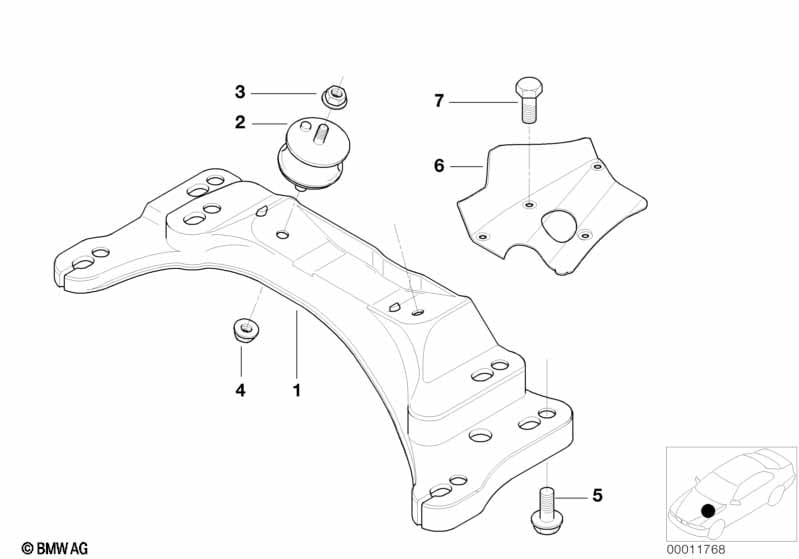

This Suspension automatic transmission technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 01 | Gearbox support | 1 | 22321096931 | $37.21 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Automatic transmission |
L807A=Yes S205A=Yes |
|||||||||
| 01 | Gearbox support | 1 | 22321096931 | $37.21 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 02 | Transmission bearing set | 2 | 22316799331 | +core | Shop at ECS Tuning | |||||
| 03 | Hex nut with plate | M8 | 2 | 22316760944 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Hex nut with plate | M8-ZNS3 | 2 | 07129904862 | $1.12 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M8X22-8.8-ZNS3 | 4 | 22326760945 | $1.08 | Shop at ECS Tuning | ||||
| 06 | Gearbox support heat resistant plate | 1 | 22321094579 | $3.27 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Automatic transmission |
L807A=Yes S205A=Yes |
|||||||||
| 06 | Gearbox support heat resistant plate | 1 | 22321094579 | $3.27 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 07 | Self tapping screw | 4 | 34321119239 | $0.27 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
