Engine Suspension for BMW 5 Series E39 530d (2003)

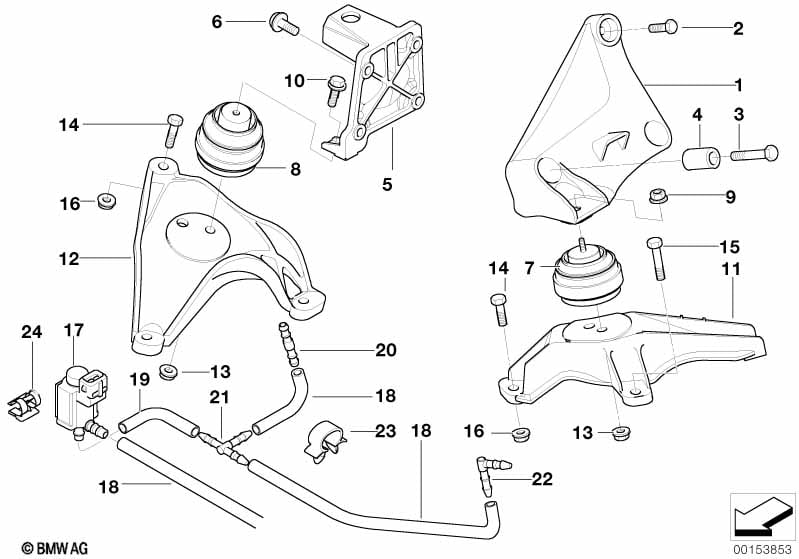

This Engine Suspension technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine support, left | 1 | 22116750441 | $27.62 | Shop at ECS Tuning | |||||
| 02 | Hex bolt with washer | M8X25-Z1 | 2 | 07119901687 | $0.62 | Shop at ECS Tuning | ||||
| 02 | Hex bolt with washer | M8X26 | 2 | 07119902613 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M8X55 | 1 | 07119903251 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M8X55 | 1 | 07119912526 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Washer | 8,4X16X1,6-ZNNV | 1 | 07119907030 | Shop at ECS Tuning | |||||
| 04 | Bush | 20X9X29 | 1 | 22116750044 | Shop at ECS Tuning | |||||
| 05 | Engine support right | 1 | 22116751226 | $27.62 | Shop at ECS Tuning | |||||
| 06 | Hex bolt with washer | M8X26-10.9-ZNS3 | 4 | 07119904092 | Shop at ECS Tuning | |||||
| 07 | Engine mount, left | 1 | 22116751281 | $111.03 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex nut | AM10-10-ZNS3 | 2 | 07129904865 | $1.00 | Shop at ECS Tuning | ||||
| 08 | Engine mount, right | 1 | 22111096514 | $111.03 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex bolt with washer | M10X30-U1-10.9 | 1 | 07119903813 | $0.82 | Shop at ECS Tuning | ||||
| -- | Hex nut | AM10-10-ZNS3 | 1 | 07129904865 | $1.00 | Shop at ECS Tuning | ||||
| 09 | Hex nut | AM10-10-ZNS3 | 1 | 07129904865 | $1.00 | Shop at ECS Tuning | ||||
| 10 | Hex bolt with washer | M10X30-U1-10.9 | 1 | 07119903813 | $0.82 | Shop at ECS Tuning | ||||
| 11 | Console left | 1 | 22111096079 | $29.48 | Shop at ECS Tuning | |||||
| 12 | Console right | 1 | 22111096080 | $29.48 | Shop at ECS Tuning | |||||
| 13 | Hex nut | AM10-10-ZNS3 | 2 | 07129904865 | $1.00 | Shop at ECS Tuning | ||||
| 15 | Hex bolt with washer | M10X50 | 1 | 07119906091 | Shop at ECS Tuning | |||||
| 16 | Hex nut | AM10-10-ZNS3 | 6 | 07129904865 | $1.00 | Shop at ECS Tuning | ||||
| 17 | Electr.valve | 1 | 11747810831 | $46.70 | Shop at ECS Tuning | |||||
| 18 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 19 | Vacuum hose red | 3,3X1,8 | X | 11747797050 | $17.32 | Shop at ECS Tuning | ||||
| 20 | Connection piece | D=4MM | 1 | 11151276486 | $1.08 | Shop at ECS Tuning | ||||
| 21 | T-Connector | 1 | 11731261489 | $0.56 | Shop at ECS Tuning | |||||
| 23 | Fixing clamp | 3 | 22111093424 | $0.24 | Shop at ECS Tuning | |||||
| 24 | Tubing support | D=10,8MM | 1 | 64111364073 | $0.57 | Shop at ECS Tuning | ||||
