Suspension automatic transmission for BMW 5 Series E39 530d (2000)

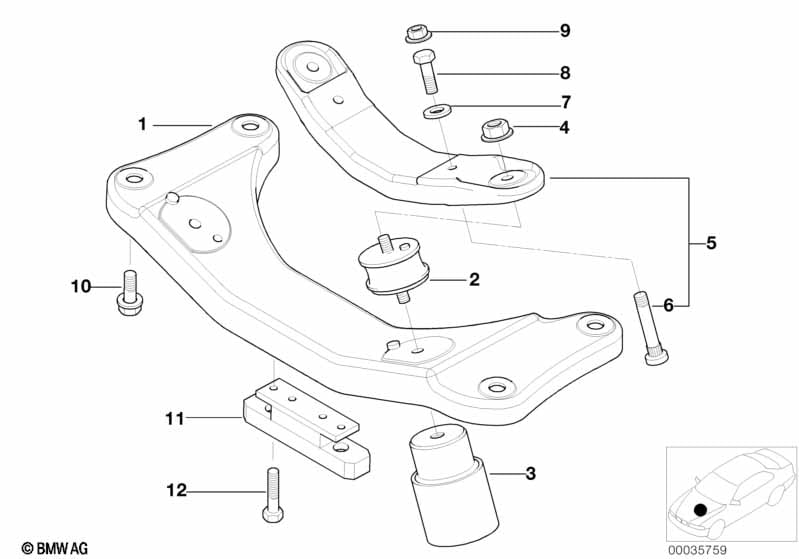

This Suspension automatic transmission technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Gearbox support | 1 | 22321096106 | $41.29 | Shop at ECS Tuning | |||||
| 02 | Transmission bearing set | 2 | 22316771221 | $13.40 | +core | Shop at ECS Tuning | ||||
| 03 | Additional weight left | 1 | 22316750367 | $35.56 | ENDED | Shop at ECS Tuning | ||||
| 03 | Additional weight right | 1 | 22316750368 | $35.56 | Shop at ECS Tuning | |||||
| 04 | Hex nut with plate | M8-ZNS3 | 2 | 07129904862 | $1.12 | Shop at ECS Tuning | ||||
| 05 | Adapter | A5S 440Z | 1 | 11/1998 | 22321097336 | Shop at ECS Tuning | ||||
| 05 | Adapter | A5S 390R | 1 | 11/1998 | 22321097349 | Shop at ECS Tuning | ||||
| 06 | Knurled bolt | 2 | 11/1998 | 21511203012 | $2.18 | Shop at ECS Tuning | ||||
| 09 | Hex nut with plate | M8 | 2 | 11/1998 | 22316760944 | $0.38 | Shop at ECS Tuning | |||
| 10 | Hex bolt with washer | M8X22-8.8-ZNS3 | 4 | 22326760945 | $1.08 | Shop at ECS Tuning | ||||
| 11 | Vibration absorber | 1 | 22321094104 | Shop at ECS Tuning | ||||||
| 12 | Hexagon screw with flange | 2 | 22311095939 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
