Engine Suspension for BMW 3 Series E46 330xi (2004)

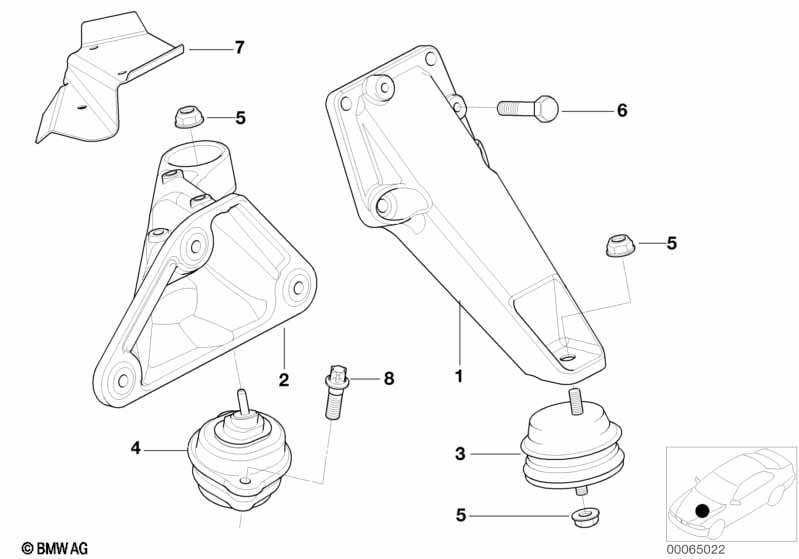

This Engine Suspension technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting bracket left | 1 | 22116750853 | $41.78 | Shop at ECS Tuning | |||||
| 02 | Supporting bracket right | 1 | 22116750852 | $44.98 | Shop at ECS Tuning | |||||
| 03 | Engine mount | 1 | 11812283798 | $77.94 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Flange nut | M10 | 2 | 22116779973 | $0.68 | Shop at ECS Tuning | ||||
| 04 | Engine mount | 1 | 22116750862 | $92.13 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Flange nut | M10 | 1 | 22116779973 | $0.68 | Shop at ECS Tuning | ||||
| -- | ASA-Bolt | M8X35-Z1-ZNS3 | 2 | 07129904088 | $1.05 | Shop at ECS Tuning | ||||
| 05 | Flange nut | M10 | 3 | 22116779973 | $0.68 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M8X34-ZA-Z1 | 7 | 07119900728 | $0.62 | Shop at ECS Tuning | ||||
| 07 | Heat Protection Plate Right | 1 | 22116754500 | $5.56 | Shop at ECS Tuning | |||||
| 08 | ASA-Bolt | M8X35-Z1-ZNS3 | 2 | 07129904088 | $1.05 | Shop at ECS Tuning | ||||
