Gearbox suspension for BMW 3 Series E46 330d (2002)

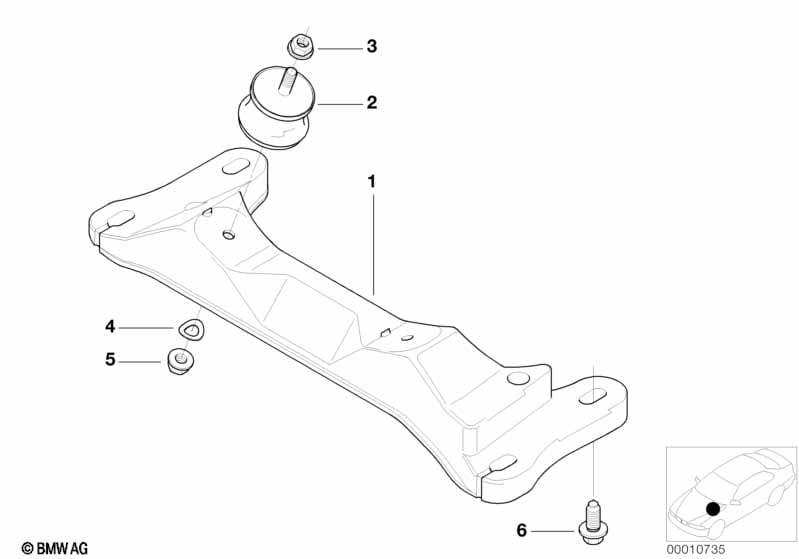

This Gearbox suspension technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 01 | Gearbox support | 1 | 22321096931 | $37.21 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission |
S205A=No |
|||||||||
| 01 | Gearbox support | 1 | 22316752795 | ENDED | Shop at ECS Tuning | |||||
| 01 | Gearbox support | 1 | 22311096811 | Shop at ECS Tuning | ||||||
| 02 | Transmission bearing set | 2 | 22316771221 | $13.40 | +core | Shop at ECS Tuning | ||||
| 03 | Hex nut with plate | M8 | 2 | 22316760944 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 05 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M8X22-8.8-ZNS3 | 4 | 22326760945 | $1.08 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330d Gearbox suspension?
- This technical diagram illustrates the Gearbox suspension within the Engine and Transmission Suspension group for the 3 Series E46 330d produced during 2002. It provides a detailed exploded view of the components, identifying key parts such as the Gearbox support (Part #22321096931).
- Which models use the hardware listed in this Gearbox suspension?
- The hardware and components featured in the Gearbox suspension are specific to the 3 Series E46 330d produced during 2002. These technical specifications ensure that parts like the Gearbox support (22321096931) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Gearbox suspension assembly?
- Each item in the Gearbox suspension corresponds to the numbered list below the illustration. For the 3 Series E46 330d, you can identify the Gearbox support by locating its position on the schematic, which then links to the official BMW part number 22321096931 for the Engine and Transmission Suspension section.
