Engine Suspension for BMW 7 Series E65 760i (2005)

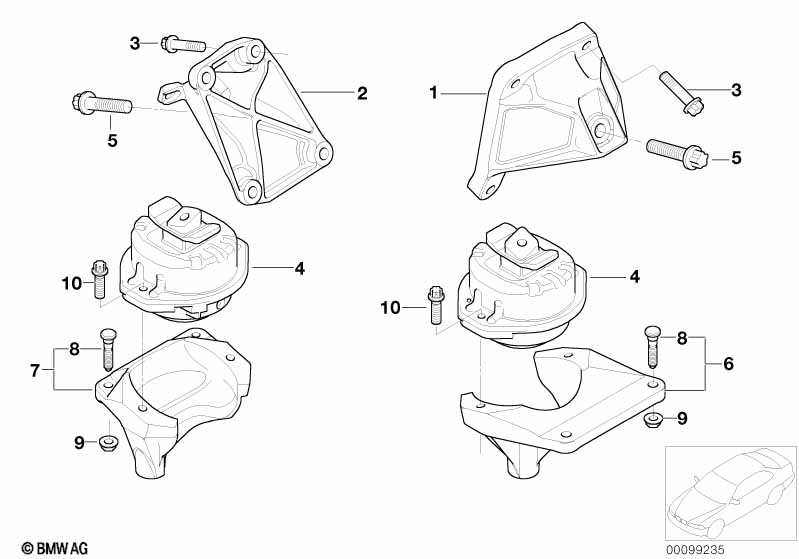

This Engine Suspension technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 760i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine supporting bracket, left | 1 | 22116758431 | $34.51 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Engine supporting bracket, right | 1 | 22116758432 | $34.51 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Torx screw | M10X40-Z1-10.9 | 8 | 07129903976 | $1.05 | Shop at ECS Tuning | ||||
| 04 | Engine mount | 2 | 22116770790 | $75.67 | +core | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | ASA-Bolt | M8X35-Z1-ZNS3 | 4 | 07129904088 | $1.05 | Shop at ECS Tuning | ||||
| -- | Torx-bolt with washer | M12X1,5X40-ZNS3 | 2 | 07129905834 | $4.18 | ENDED | Shop at ECS Tuning | |||
| 05 | Star-socket screw | BM12X1,5X40-U1- | 2 | 07119908507 | Shop at ECS Tuning | |||||
| 06 | Console left | 1 | 22116779979 | $43.38 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Console right | 1 | 22116779980 | $43.38 | ENDED, +core | Shop at ECS Tuning | ||||
| 08 | Knurled bolt | M8X40 | 4 | 22116779975 | $2.08 | Shop at ECS Tuning | ||||
| 09 | Hex nut | M8-ZNS3 | 4 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| 10 | ASA-Bolt | M8X35-Z1-ZNS3 | 4 | 07129904088 | $1.05 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 760i Engine Suspension?
- This technical diagram illustrates the Engine Suspension within the Engine and Transmission Suspension group for the 7 Series E65 760i produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Engine supporting bracket, left (Part #22116758431).
- Which models use the hardware listed in this Engine Suspension?
- The hardware and components featured in the Engine Suspension are specific to the 7 Series E65 760i produced during 2005. These technical specifications ensure that parts like the Engine supporting bracket, left (22116758431) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Engine Suspension assembly?
- Each item in the Engine Suspension corresponds to the numbered list below the illustration. For the 7 Series E65 760i, you can identify the Engine supporting bracket, left by locating its position on the schematic, which then links to the official BMW part number 22116758431 for the Engine and Transmission Suspension section.
