Engine Suspension for BMW 5 Series E61 LCI 535d (2010)

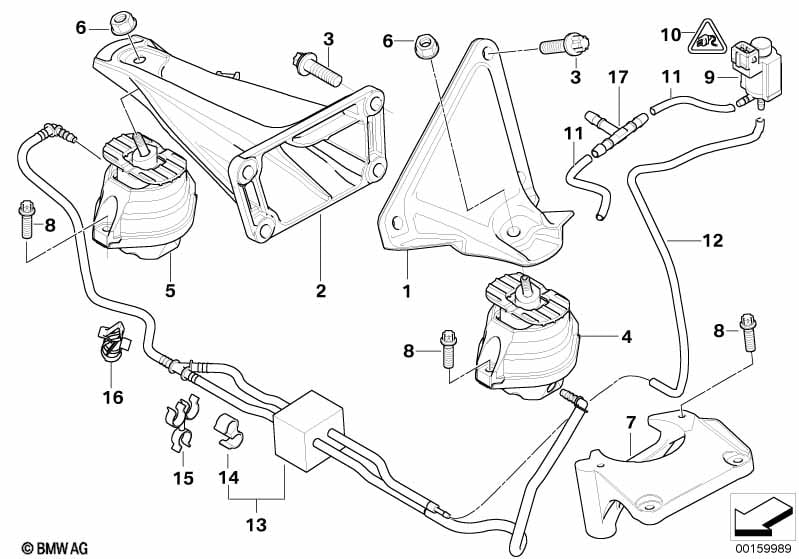

This Engine Suspension technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 535d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine supporting bracket, left | 1 | 22116769153 | +core | Shop at ECS Tuning | |||||
| 02 | Engine supporting bracket, right | 1 | 22116770632 | Shop at ECS Tuning | ||||||
| 03 | Torx screw | M10X40-Z1-10.9 | 7 | 07129903976 | $1.05 | Shop at ECS Tuning | ||||
| 04 | Engine mount, left | 1 | 22116774619 | $71.68 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | ASA-Bolt | M8X35-Z1-ZNS3 | 2 | 07129904088 | $1.05 | Shop at ECS Tuning | ||||
| -- | Hex nut | AM10-10-ZNS3 | 1 | 07129904865 | $1.00 | Shop at ECS Tuning | ||||
| 05 | Engine mount, right | 1 | 22116774620 | $71.68 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | ASA-Bolt | M8X35-Z1-ZNS3 | 2 | 07129904088 | $1.05 | Shop at ECS Tuning | ||||
| -- | Hex nut | AM10-10-ZNS3 | 1 | 07129904865 | $1.00 | Shop at ECS Tuning | ||||
| 06 | Hex nut | AM10-10-ZNS3 | 2 | 07129904865 | $1.00 | Shop at ECS Tuning | ||||
| 07 | Console left | 1 | 22116761117 | $29.48 | Shop at ECS Tuning | |||||
| 08 | ASA-Bolt | M8X35-Z1-ZNS3 | 6 | 07129904088 | $1.05 | Shop at ECS Tuning | ||||
| 09 | Electr.valve | 1 | 11747810831 | $46.70 | Shop at ECS Tuning | |||||
| 11 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 12 | Vacuum hose red | 3,3X1,8 | X | 11747797050 | $17.32 | Shop at ECS Tuning | ||||
| 13 | Vacuum pipe | 1 | 22116773708 | Shop at ECS Tuning | ||||||
| 14 | Hose clamp | 1 | 22116771115 | Shop at ECS Tuning | ||||||
| 15 | Hose clamp | 1 | 11742248843 | $1.18 | Shop at ECS Tuning | |||||
| 16 | Clip | 3 | 12521437136 | $0.63 | Shop at ECS Tuning | |||||
| 17 | T-Connector | 1 | 11721439973 | $1.07 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E61 LCI 535d Engine Suspension?
- This technical diagram illustrates the Engine Suspension within the Engine and Transmission Suspension group for the 5 Series E61 LCI 535d produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Engine supporting bracket, left (Part #22116769153).
- Which models use the hardware listed in this Engine Suspension?
- The hardware and components featured in the Engine Suspension are specific to the 5 Series E61 LCI 535d produced during 2010. These technical specifications ensure that parts like the Engine supporting bracket, left (22116769153) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Engine Suspension assembly?
- Each item in the Engine Suspension corresponds to the numbered list below the illustration. For the 5 Series E61 LCI 535d, you can identify the Engine supporting bracket, left by locating its position on the schematic, which then links to the official BMW part number 22116769153 for the Engine and Transmission Suspension section.
