Engine Suspension for BMW 3 Series E90 LCI 320i (2011)

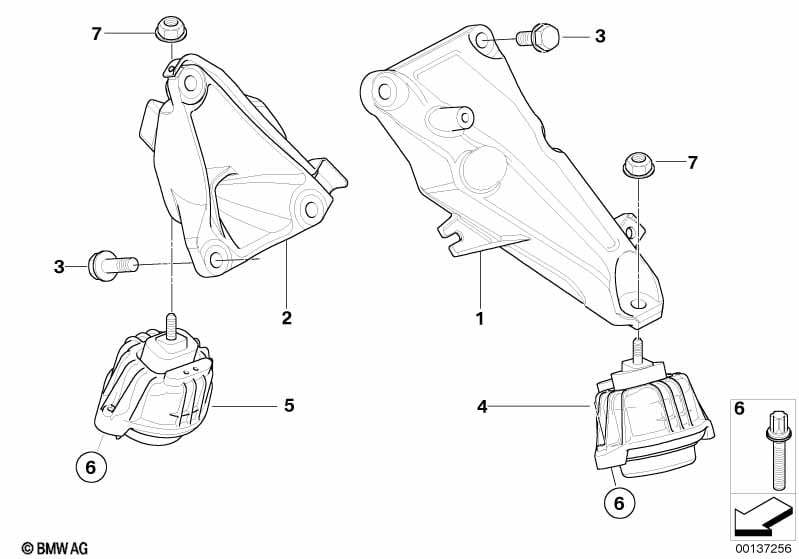

This Engine Suspension technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine support, left | 1 | 22116776529 | Shop at ECS Tuning | ||||||
| 02 | Engine support right | 1 | 22116760308 | $42.97 | Shop at ECS Tuning | |||||
| 03 | ASA-Bolt | M10X35 | 7 | 22116769558 | $0.83 | Shop at ECS Tuning | ||||
| 04 | Engine mount | 1 | 06/2009 | 22116768853 | $56.57 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Hex bolt with washer | M8X45-10.9-ZNS3 | 2 | 06/2009 | 22116850329 | Shop at ECS Tuning | ||||
| -- | Flange nut | M10-10-ZNS3 | 1 | 06/2009 | 07119904670 | $0.64 | Shop at ECS Tuning | |||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 04 | Engine mount | 1 | 06/2009 | 22116773742 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex bolt with washer | M8X45-10.9-ZNS3 | 2 | 06/2009 | 22116850329 | Shop at ECS Tuning | ||||
| -- | Flange nut | M10-10-ZNS3 | 1 | 06/2009 | 07119904670 | $0.64 | Shop at ECS Tuning | |||
| 05 | Engine mount | 1 | 06/2009 | 22116768852 | $56.57 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Hex bolt with washer | M8X45-10.9-ZNS3 | 2 | 06/2009 | 22116850329 | Shop at ECS Tuning | ||||
| -- | Flange nut | M10-10-ZNS3 | 1 | 06/2009 | 07119904670 | $0.64 | Shop at ECS Tuning | |||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 05 | Engine mount | 1 | 06/2009 | 22116773742 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex bolt with washer | M8X45-10.9-ZNS3 | 2 | 06/2009 | 22116850329 | Shop at ECS Tuning | ||||
| -- | Flange nut | M10-10-ZNS3 | 1 | 06/2009 | 07119904670 | $0.64 | Shop at ECS Tuning | |||
| 06 | Hex bolt with washer | M8X45-10.9-ZNS3 | 4 | 22116850329 | Shop at ECS Tuning | |||||
| 07 | Flange nut | M10-10-ZNS3 | 2 | 07119904670 | $0.64 | Shop at ECS Tuning | ||||
