Engine Suspension for BMW 7 Series E66 730Li (2008)

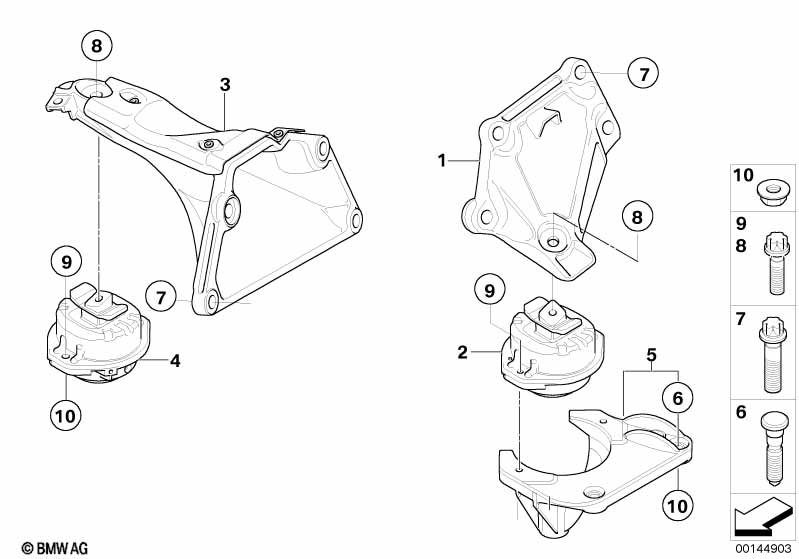

This Engine Suspension technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 730Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine support, left | 1 | 22116768973 | ENDED, +core | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of alu. screws engine support | 1 | 22110392551 | $11.82 | Shop at ECS Tuning | |||||
| Attention! Aluminum screws may only be used once. For additional information, refer to the repair manual! |
||||||||||
| 02 | Engine mount, left | 1 | 22116770797 | +core | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Torx screw | M10X40-Z1-10.9 | 1 | 07129903976 | $1.05 | Shop at ECS Tuning | ||||
| -- | ASA-Bolt | M8X35-Z1-ZNS3 | 2 | 07129904088 | $1.05 | Shop at ECS Tuning | ||||
| 03 | Complete right engine support | 1 | 22116768974 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of alu. screws engine support | 1 | 22110392551 | $11.82 | Shop at ECS Tuning | |||||
| Attention! Aluminum screws may only be used once. For additional information, refer to the repair manual! |
||||||||||
| 04 | Engine mount, right | 1 | 22116770798 | +core | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Torx screw | M10X40-Z1-10.9 | 1 | 07129903976 | $1.05 | Shop at ECS Tuning | ||||
| -- | Hex nut | M8-ZNS3 | 2 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| -- | ASA-Bolt | M8X35-Z1-ZNS3 | 2 | 07129904088 | $1.05 | Shop at ECS Tuning | ||||
| 05 | Console left | 1 | 22116779981 | +core | Shop at ECS Tuning | |||||
| 06 | Knurled bolt | M8X40 | 2 | 22116779975 | $2.08 | Shop at ECS Tuning | ||||
| Attention! Aluminum screws may only be used once. For additional information, refer to the repair manual! |
||||||||||
| 07 | Set of alu. screws engine support | 2 | 22110392551 | $11.82 | Shop at ECS Tuning | |||||
| 08 | Torx screw | M10X40-Z1-10.9 | 2 | 07129903976 | $1.05 | Shop at ECS Tuning | ||||
| 09 | ASA-Bolt | M8X35-Z1-ZNS3 | 2 | 07129904088 | $1.05 | Shop at ECS Tuning | ||||
| 10 | Hex nut | M8-ZNS3 | 4 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
