Gearbox suspension for BMW 5 Series E60 525i (2007)

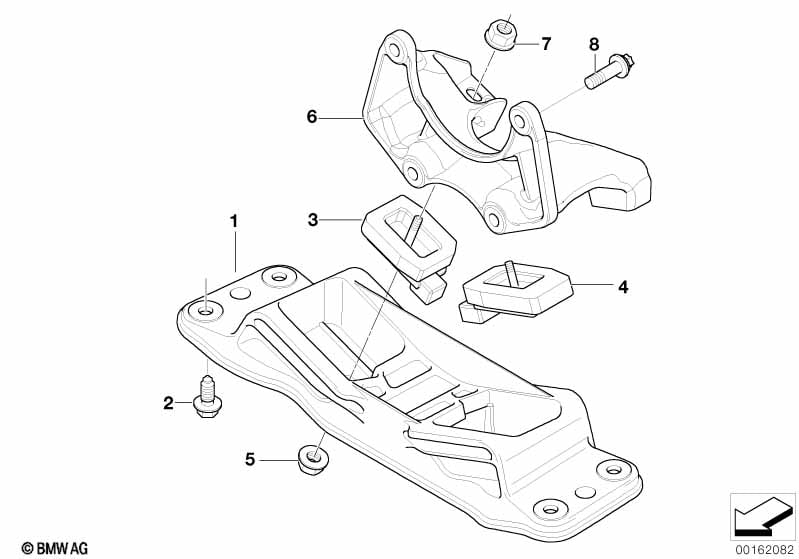

This Gearbox suspension technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cross member | 1 | 22316776522 | $42.79 | +core | Shop at ECS Tuning | ||||
| For vehicles with National version Korea and Automatic transmission |
L802A=Yes S205A=Yes |
|||||||||
| 01 | Gearbox support | 1 | 22316776521 | $60.67 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and National version Korea |
S205A=No L802A=Yes |
|||||||||
| 01 | Cross member | 1 | 22316776522 | $42.79 | +core | Shop at ECS Tuning | ||||
| 02 | Hex bolt with washer | M8X22-8.8-ZNS3 | 4 | 22326760945 | $1.08 | Shop at ECS Tuning | ||||
| For vehicles with National version Korea and Automatic transmission |
L802A=Yes S205A=Yes |
|||||||||
| 02 | Hex bolt with washer | M8X22-8.8-ZNS3 | 6 | 22326760945 | $1.08 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission and National version Korea |
S205A=No L802A=Yes |
|||||||||
| 02 | Hex bolt with washer | M8X22-8.8-ZNS3 | 4 | 22326760945 | $1.08 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
S205A=No |
|||||||||
| 03 | Transmission bearing set | 1 | 22316777175 | $14.47 | Shop at ECS Tuning | |||||
| 04 | Transmission bearing set | 1 | 22316774004 | $13.05 | Shop at ECS Tuning | |||||
| 05 | Hex nut | M8-ZNS3 | 2 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| 06 | Transmission supporting bracket | 1 | 22316776525 | $44.31 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Hex nut with plate | M8 | 2 | 22316760944 | $0.38 | Shop at ECS Tuning | ||||
| 08 | ASA-Bolt | M10X35 ZNNIV SI | 4 | 07129905738 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
