Engine Suspension for BMW 5 Series E60 LCI 525xi (2009)

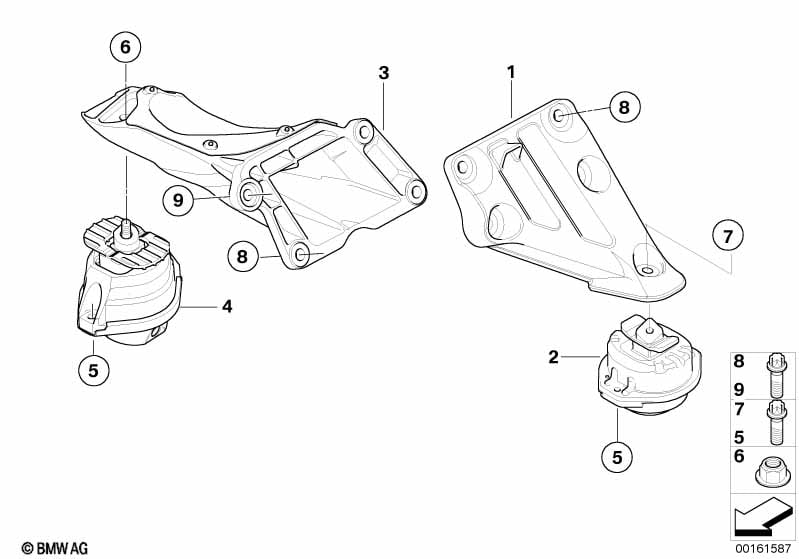

This Engine Suspension technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 525xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine supporting bracket, left | 1 | 22116769279 | $47.21 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set of alu. screws engine support | 1 | 22110392551 | $11.82 | Shop at ECS Tuning | |||||
| Attention! Aluminum screws may only be used once. For additional information, refer to the repair manual! |
||||||||||
| 02 | Engine mount, left | 1 | 22116775487 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | ASA-Bolt | M8X35-Z1-ZNS3 | 2 | 07129904088 | $1.05 | Shop at ECS Tuning | ||||
| -- | ASA-Bolt | M10X35 ZNNIV SI | 1 | 07129905738 | Shop at ECS Tuning | |||||
| 03 | Complete right engine support | 1 | 22116769280 | $64.38 | +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set of alu. screws engine support | 1 | 22110392551 | $11.82 | Shop at ECS Tuning | |||||
| Attention! Aluminum screws may only be used once. For additional information, refer to the repair manual! |
||||||||||
| 04 | Engine mount, right | 1 | 22116775488 | ENDED | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | ASA-Bolt | M8X35-Z1-ZNS3 | 2 | 07129904088 | $1.05 | Shop at ECS Tuning | ||||
| -- | Hex nut | AM10-10-ZNS3 | 1 | 07129904865 | $1.00 | Shop at ECS Tuning | ||||
| 05 | ASA-Bolt | M8X35-Z1-ZNS3 | 4 | 07129904088 | $1.05 | Shop at ECS Tuning | ||||
| 06 | Hex nut | AM10-10-ZNS3 | 1 | 07129904865 | $1.00 | Shop at ECS Tuning | ||||
| 07 | ASA-Bolt | M10X35 ZNNIV SI | 1 | 07129905738 | Shop at ECS Tuning | |||||
| Attention! Aluminum screws may only be used once. For additional information, refer to the repair manual! |
||||||||||
| 08 | Set of alu. screws engine support | 2 | 22110392551 | $11.82 | Shop at ECS Tuning | |||||
