Engine Suspension for BMW 3 Series E91 325d (2008)

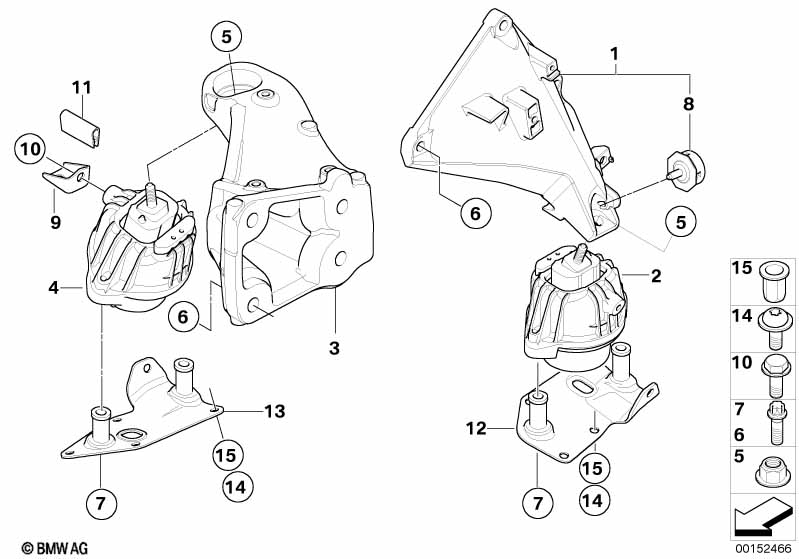

This Engine Suspension technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 325d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine supporting bracket, left | 1 | 22116773839 | $53.25 | +core | Shop at ECS Tuning | ||||
| 02 | Engine mount, left | 1 | 22116773247 | $73.58 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Flange nut | M10-10-ZNS3 | 1 | 07119904670 | $0.64 | Shop at ECS Tuning | ||||
| -- | Hex bolt | M8X80-U1-10.9 | 2 | 07119907357 | Shop at ECS Tuning | |||||
| 03 | Engine supporting bracket, right | 1 | 22116760320 | $73.43 | +core | Shop at ECS Tuning | ||||
| 04 | Engine mount, right | 1 | 22116773248 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Flange nut | M10-10-ZNS3 | 1 | 07119904670 | $0.64 | Shop at ECS Tuning | ||||
| -- | Hex bolt | M8X80-U1-10.9 | 2 | 07119907357 | Shop at ECS Tuning | |||||
| 05 | Flange nut | M10-10-ZNS3 | 2 | 07119904670 | $0.64 | Shop at ECS Tuning | ||||
| 06 | Torx screw | M10X40-Z1-10.9 | 7 | 07129903976 | $1.05 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M8X80-U1-10.9 | 4 | 07119907357 | Shop at ECS Tuning | |||||
| 08 | Vibration absorber | 1 | 22116773246 | $67.48 | ENDED | Shop at ECS Tuning | ||||
| 09 | Support bracket | 2 | 22116773251 | $3.89 | Shop at ECS Tuning | |||||
| 10 | Hex bolt with washer | M8X20-U1-8.8 | 4 | 07119904992 | $0.55 | Shop at ECS Tuning | ||||
| 11 | Running meter, edge protection | 5 METER | X | 23148372833 | $12.43 | Shop at ECS Tuning | ||||
| 12 | Reinforcement plate | 1 | 22116773249 | $23.22 | Shop at ECS Tuning | |||||
| 13 | Reinforcement plate | 1 | 22116773250 | $23.22 | Shop at ECS Tuning | |||||
| 14 | Isa screw with washer | M8X20-U1-ZNS3 | 10 | 22116775521 | $0.85 | Shop at ECS Tuning | ||||
| 15 | Blind rivet nut, flat headed | M8 | 12 | 41132291403 | $1.53 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E91 325d Engine Suspension?
- This technical diagram illustrates the Engine Suspension within the Engine and Transmission Suspension group for the 3 Series E91 325d produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Engine supporting bracket, left (Part #22116773839).
- Which models use the hardware listed in this Engine Suspension?
- The hardware and components featured in the Engine Suspension are specific to the 3 Series E91 325d produced during 2008. These technical specifications ensure that parts like the Engine supporting bracket, left (22116773839) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Engine Suspension assembly?
- Each item in the Engine Suspension corresponds to the numbered list below the illustration. For the 3 Series E91 325d, you can identify the Engine supporting bracket, left by locating its position on the schematic, which then links to the official BMW part number 22116773839 for the Engine and Transmission Suspension section.
