Engine Suspension for BMW 3 Series E91 LCI 330d (2012)

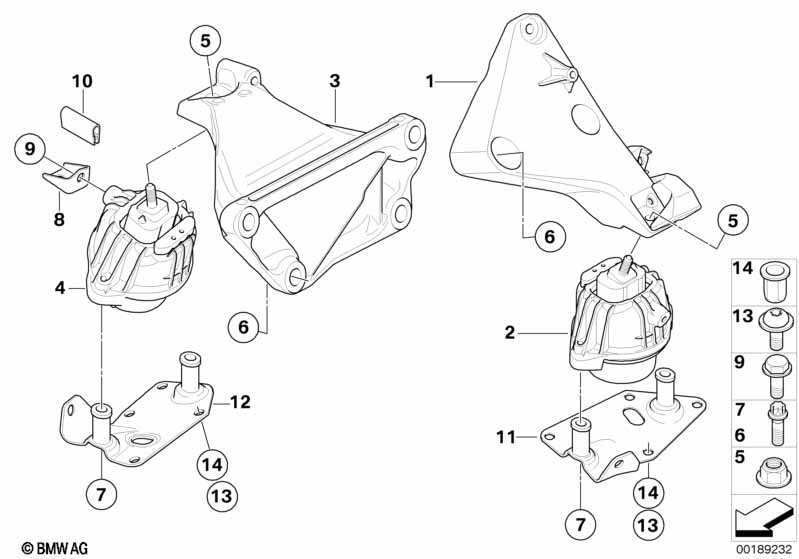

This Engine Suspension technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine supporting bracket, left | 1 | 22116786691 | +core | Shop at ECS Tuning | |||||
| 02 | Engine mount, left | 1 | 22116773247 | $73.58 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Flange nut | M10-10-ZNS3 | 1 | 07119904670 | $0.64 | Shop at ECS Tuning | ||||
| -- | Hex bolt | M8X80-U1-10.9 | 2 | 07119907357 | Shop at ECS Tuning | |||||
| 03 | Engine supporting bracket, right | 1 | 22116786692 | +core | Shop at ECS Tuning | |||||
| 04 | Engine mount, right | 1 | 22116773248 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Flange nut | M10-10-ZNS3 | 1 | 07119904670 | $0.64 | Shop at ECS Tuning | ||||
| -- | Hex bolt | M8X80-U1-10.9 | 2 | 07119907357 | Shop at ECS Tuning | |||||
| 05 | Flange nut | M10-10-ZNS3 | 2 | 07119904670 | $0.64 | Shop at ECS Tuning | ||||
| 06 | Torx screw | M10X40-Z1-10.9 | 7 | 07129903976 | $1.05 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M8X45-10.9-ZNS3 | 4 | 22116850329 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
