Engine Suspension for BMW 4 Series F32 LCI 420iX (2020)

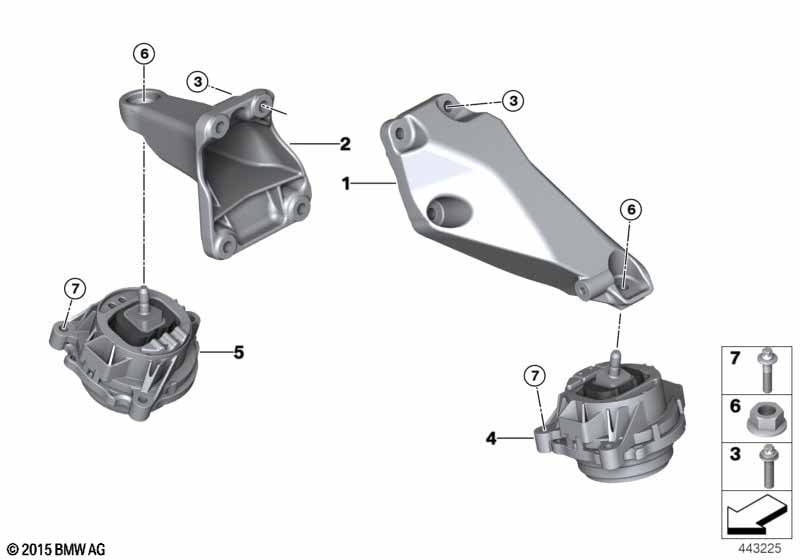

This Engine Suspension technical drawing provides a detailed breakdown of the assembly for the 4 Series F32 LCI 420iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine supporting bracket, left | 1 | 22116861401 | Shop at ECS Tuning | ||||||
| 02 | Engine supporting bracket, right | 1 | 22116859616 | Shop at ECS Tuning | ||||||
| 03 | Star-socket screw | BM10X40-U1-8.8- | 8 | 07119908517 | Shop at ECS Tuning | |||||
| 04 | Engine mount, left | 1 | 22116856183 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Torx bolt | M8X33-8.8-ZNS3 | 3 | 31106794380 | Shop at ECS Tuning | |||||
| -- | Flange nut | M10-10-ZNS3 | 1 | 07119904670 | $0.64 | Shop at ECS Tuning | ||||
| 05 | Engine mount, right | 1 | 22116856184 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Torx bolt | M8X33-8.8-ZNS3 | 3 | 31106794380 | Shop at ECS Tuning | |||||
| -- | Flange nut | M10-10-ZNS3 | 1 | 07119904670 | $0.64 | Shop at ECS Tuning | ||||
| For vehicles with Hot-climate version |
S823A=Yes |
|||||||||
| 05 | Engine mount, right | 1 | 22116883978 | Shop at ECS Tuning | ||||||
| 06 | Flange nut | M10-10-ZNS3 | 2 | 07119904670 | $0.64 | Shop at ECS Tuning | ||||
| 07 | Torx bolt | M8X33-8.8-ZNS3 | 6 | 31106794380 | Shop at ECS Tuning | |||||
