Engine Suspension for BMW 5 Series G31 Touring 520i (2019)

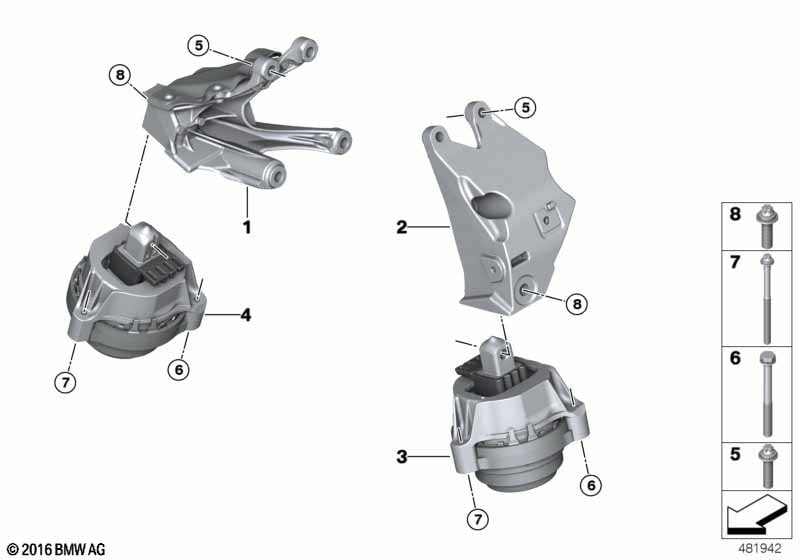

This Engine Suspension technical drawing provides a detailed breakdown of the assembly for the 5 Series G31 Touring 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine supporting bracket, right | 1 | 22116861564 | Shop at ECS Tuning | ||||||
| 02 | Engine supporting bracket, left | 1 | 22116861563 | Shop at ECS Tuning | ||||||
| Please run diagnosis ABL-DIT-AT1214_BX8_MECML Service solution: Observe SEL-SEL-P-22- 20000769628051. |
||||||||||
| 03 | Engine mount, left | 1 | 22116860487 | Shop at ECS Tuning | ||||||
| 04 | Engine mount, right | 1 | 22116860488 | Shop at ECS Tuning | ||||||
| 05 | Star-socket screw | BM10X40-U1-8.8- | 8 | 07119908517 | Shop at ECS Tuning | |||||
| 06 | Hex bolt with washer | M8X90 ZNNIV SI | 4 | 07119907017 | Shop at ECS Tuning | |||||
| 07 | Star-socket screw | BM8X115-U1-8.8 | 2 | 07119908621 | Shop at ECS Tuning | |||||
| 08 | External Torx screw | BM12X1,5X40-U1- | 2 | 07/2024 | 07119909928 | Shop at ECS Tuning | ||||
