Engine Suspension for BMW MINI F56 JCW (2021)

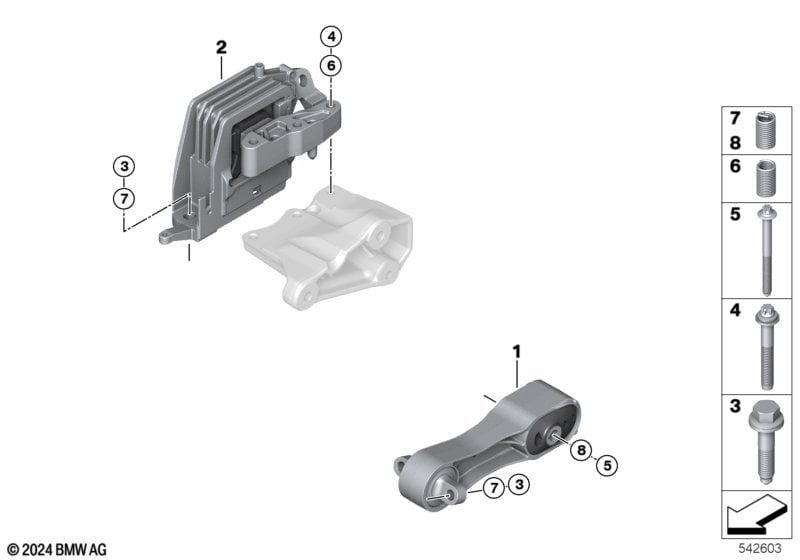

This Engine Suspension technical drawing provides a detailed breakdown of the assembly for the MINI F56 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Observe service solution 20000777422061. Observe service solution 20000804262979. |
||||||||||
| 01 | Stabilizer link | 1 | 22116885790 | Shop at ECS Tuning | ||||||
| For vehicles with Sport automatic transmission Observe service solution 20000777422061. Observe service solution 20000804262979. |
S2TBA=Yes |
|||||||||
| 01 | Stabilizer link | 1 | 22116885788 | Shop at ECS Tuning | ||||||
| 02 | Engine mount | 1 | 22118835562 | Shop at ECS Tuning | ||||||
| For vehicles with Sport automatic transmission |
S2TBA=Yes |
|||||||||
| 02 | Engine mount | 1 | 22118835566 | Shop at ECS Tuning | ||||||
| 03 | ASA-Bolt | M12X1.5X50-10.9 | 4 | 22116858061 | Shop at ECS Tuning | |||||
| 04 | Torx screw, self-threading | M10X70SPU1-10.9 | 3 | 07129908650 | Shop at ECS Tuning | |||||
| 05 | ASA-Bolt | M12X1,5X10010.9 | 1 | 31106868038 | Shop at ECS Tuning | |||||
| 06 | Heli-Coil threaded insert | M10X25 | 3 | 33306782756 | Shop at ECS Tuning | |||||
| Engine mount on cylinder head | ||||||||||
| 07 | Heli-Coil threaded insert | M12X1,5 | 3 | 07146958589 | $3.54 | Shop at ECS Tuning | ||||
| Anti-roll bar link on front subframe and engine mount on side member/spring support |
||||||||||
| 08 | Heli-Coil threaded insert | M12X1,5X30 | 2 | 33306780501 | Shop at ECS Tuning | |||||
| Anti-roll bar link on oil pan | ||||||||||
