Gearbox suspension for BMW XM G09 XM (2025)

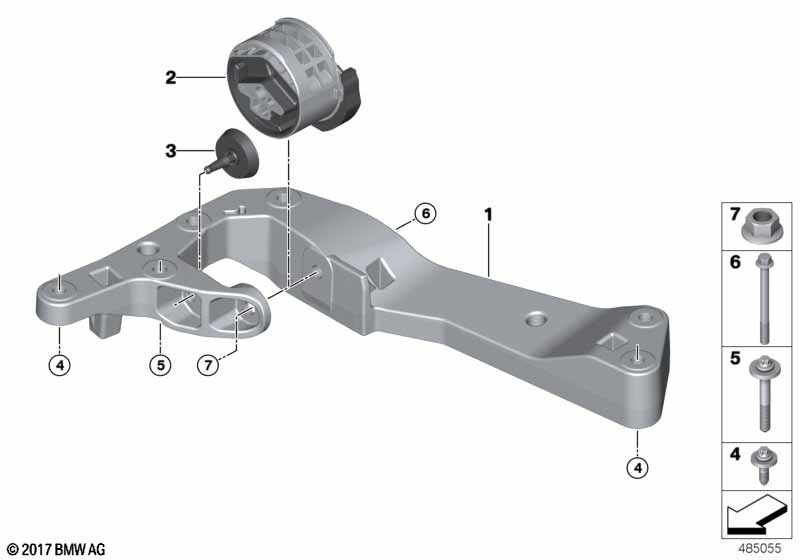

This Gearbox suspension technical drawing provides a detailed breakdown of the assembly for the XM G09 XM. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Transmission cross member | 1 | 22325A28628 | Shop at ECS Tuning | ||||||
| 02 | Transmission mounting | 1 | 22319844631 | Shop at ECS Tuning | ||||||
| 03 | Rubber buffer | 1 | 22316788586 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 1 | 83192405829 | Shop at ECS Tuning | |||||
| 04 | ASA-Bolt | M8X28-8.8-ZNS3 | 3 | 22326865849 | Shop at ECS Tuning | |||||
| 05 | ASA-Bolt | M8X60-8.8-ZNS3 | 3 | 22326865850 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M12X1,5X130-8.8 | 1 | 07119906978 | Shop at ECS Tuning | |||||
| 07 | Hex nut | M12X1,5-10 ZNS3 | 1 | 07119906050 | $1.09 | Shop at ECS Tuning | ||||
