Gearbox suspension for BMW 3 Series E46 316i (2005)

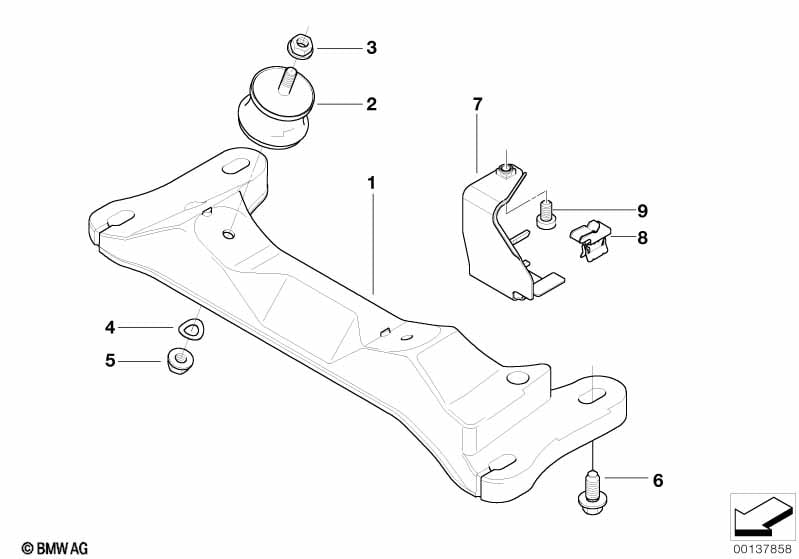

This Gearbox suspension technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Automatic transmission |
S205A=No |
|||||||||
| 01 | Gearbox support | 1 | 22316768555 | $37.21 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 01 | Gearbox support | 1 | 22326757102 | $37.21 | Shop at ECS Tuning | |||||
| 02 | Transmission bearing set | 2 | 22316799330 | +core | Shop at ECS Tuning | |||||
| 03 | Hex nut with plate | M8 | 2 | 22316760944 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Hex nut with plate | M8-ZNS3 | 2 | 01/2004 | 07129904862 | $1.12 | Shop at ECS Tuning | |||
| 06 | Hex bolt with washer | M8X22-8.8-ZNS3 | 4 | 22326760945 | $1.08 | Shop at ECS Tuning | ||||
| 07 | Bracket for lambda probe cable | 1 | 11787543744 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and EU2 exhaust emissions standard and EU3 exhaust emissions standard and Equipment for leaded fuel |
S205A=Yes S168A=Yes S169A=No S199A=No |
|||||||||
| 07 | Bracket for lambda probe cable | 1 | 11787516972 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and EU2 exhaust emissions standard and EU3 exhaust emissions standard and Equipment for leaded fuel |
S205A=Yes S168A=No S169A=Yes S199A=No |
|||||||||
| 07 | Bracket for lambda probe cable | 1 | 11787516972 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and EU2 exhaust emissions standard and EU3 exhaust emissions standard and Equipment for leaded fuel |
S205A=No S168A=Yes S169A=No S199A=No |
|||||||||
| 07 | Bracket for lambda probe cable | 1 | 11787516973 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and EU2 exhaust emissions standard and EU3 exhaust emissions standard and Equipment for leaded fuel |
S205A=No S168A=No S169A=Yes S199A=No |
|||||||||
| 07 | Bracket for lambda probe cable | 1 | 11787516973 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and EU2 exhaust emissions standard and EU3 exhaust emissions standard and Equipment for leaded fuel |
S205A=No S168A=No S169A=No S199A=No |
|||||||||
| 07 | Bracket for lambda probe cable | 1 | 11787516973 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and EU2 exhaust emissions standard and EU3 exhaust emissions standard and Equipment for leaded fuel |
S205A=No S168A=Yes S169A=No S199A=No |
|||||||||
| 08 | Fixing clamp | 1 | 11787547315 | $0.58 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and EU2 exhaust emissions standard and EU3 exhaust emissions standard and Equipment for leaded fuel |
S205A=No S168A=No S169A=Yes S199A=No |
|||||||||
| 08 | Fixing clamp | 1 | 11787547315 | $0.58 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and EU2 exhaust emissions standard and EU3 exhaust emissions standard and Equipment for leaded fuel |
S205A=No S168A=No S169A=No S199A=No |
|||||||||
| 08 | Fixing clamp | 1 | 11787547315 | $0.58 | Shop at ECS Tuning | |||||
| 09 | Hex bolt with washer | M6X12-U1-8.8 | 1 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 09 | ISA screw | M6X16-8.8-ZNNIV | 1 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
