Gearbox suspension for BMW 2 Series F74 Gran Coupé 216 (2025)

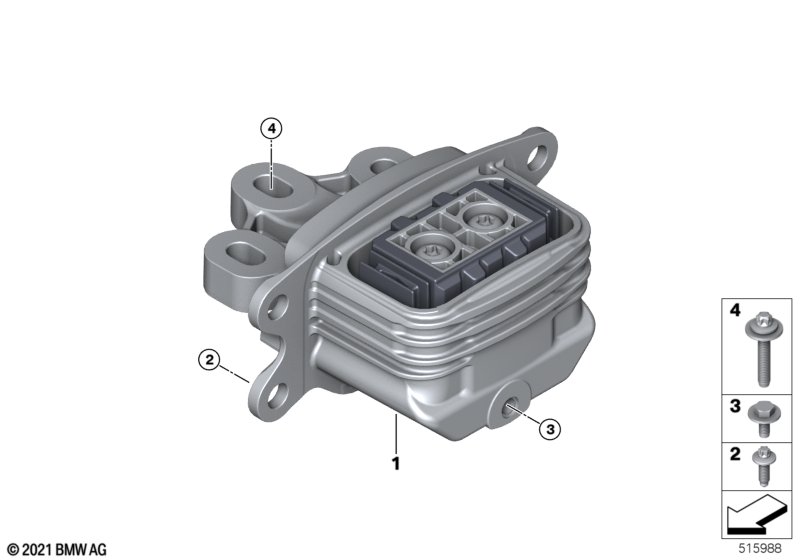

This Gearbox suspension technical drawing provides a detailed breakdown of the assembly for the 2 Series F74 Gran Coupé 216. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Transmission bearing set | IV | 1 | 22315A83205 | NoS | Shop at ECS Tuning | ||||
| 02 | ASA-Bolt | M10X25-10.9 | 4 | 22316864386 | Shop at ECS Tuning | |||||
| 03 | Hexagon screw, self-threading | M8X20SPU210.9 | 1 | 07129908653 | Shop at ECS Tuning | |||||
| 04 | ASA-Bolt | M10X55-U2-10.9- | 3 | 22316858990 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F74 Gran Coupé 216 Gearbox suspension?
- This technical diagram illustrates the Gearbox suspension within the Engine and Transmission Suspension group for the 2 Series F74 Gran Coupé 216 produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Transmission bearing set (Part #22315A83205).
- Which models use the hardware listed in this Gearbox suspension?
- The hardware and components featured in the Gearbox suspension are specific to the 2 Series F74 Gran Coupé 216 produced during 2025. These technical specifications ensure that parts like the Transmission bearing set (22315A83205) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Gearbox suspension assembly?
- Each item in the Gearbox suspension corresponds to the numbered list below the illustration. For the 2 Series F74 Gran Coupé 216, you can identify the Transmission bearing set by locating its position on the schematic, which then links to the official BMW part number 22315A83205 for the Engine and Transmission Suspension section.
