Getrag 265/5 housing+attaching parts for BMW 3 Series E30 M3 (1990)

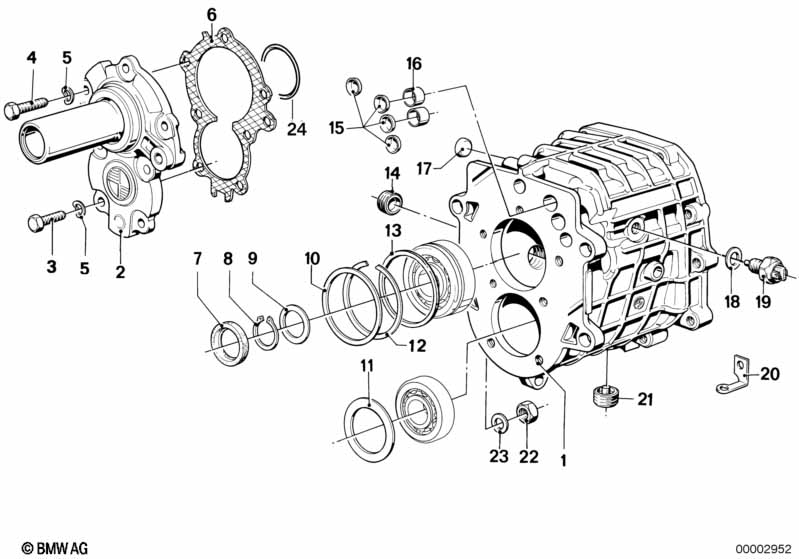

This Getrag 265/5 housing+attaching parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Transmission housing | 1 | 23111207775 | Shop at ECS Tuning | ||||||
| 02 | Housing cover | 1 | 23111228311 | $233.58 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M8X22-8.8-ZNS3 | 4 | 07119904040 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M8X30 | 3 | 07119913664 | $0.47 | Shop at ECS Tuning | ||||
| 05 | Wave washer | 8,4X15-ZNS3 | 7 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Gasket Asbestos Free | 1 | 23121222357 | $13.93 | Shop at ECS Tuning | |||||
| 07 | Shaft seal | 30X42X7 | 1 | 23111228314 | $36.00 | Shop at ECS Tuning | ||||
| 08 | Lock Ring | A30X2,5 | 1 | 23121630170 | $3.30 | Shop at ECS Tuning | ||||
| 09 | Support | 30X42X2,5 | 1 | 23121630150 | $1.97 | ENDED | Shop at ECS Tuning | |||
| 09 | Support | 30X42X2,4 | 1 | 23121630151 | $3.13 | Shop at ECS Tuning | ||||
| 09 | Support | 30X42X2,6 | 1 | 23211207172 | $2.90 | Shop at ECS Tuning | ||||
| 09 | Support | 30X42X2,65 | 1 | 23221224470 | $5.90 | Shop at ECS Tuning | ||||
| 09 | Support | 30X42X2,55 | 1 | 23221224469 | $4.24 | Shop at ECS Tuning | ||||
| 09 | Support | 30X42X2,45 | 1 | 23221224468 | $4.24 | Shop at ECS Tuning | ||||
| 09 | Support | 30X42X2,35 | 1 | 23221224467 | $4.67 | Shop at ECS Tuning | ||||
| 09 | Support | 30X42X2,3 | 1 | 23121630152 | $3.13 | Shop at ECS Tuning | ||||
| 10 | Shim | 56X72X0,3 | 1 | 23121200438 | $2.82 | Shop at ECS Tuning | ||||
| 10 | Shim | 56X72X0,4 | 1 | 23121205767 | $1.39 | Shop at ECS Tuning | ||||
| 10 | Shim | 56X72X0,5 | 1 | 23121205768 | $4.79 | Shop at ECS Tuning | ||||
| 11 | Shim | 50X62X0,3 | 1 | 23121200409 | $1.82 | Shop at ECS Tuning | ||||
| 11 | Shim | 50X62X0,4 | 1 | 23121204575 | $2.05 | Shop at ECS Tuning | ||||
| 11 | Shim | 50X62X0,5 | 1 | 23121204576 | $2.30 | Shop at ECS Tuning | ||||
| 12 | Snap ring | SP72 | 1 | 07119933305 | ENDED | Shop at ECS Tuning | ||||
| 13 | Spacer | 1 | 23211202729 | $4.63 | ENDED | Shop at ECS Tuning | ||||
| 14 | Screw plug | M24X1,5 | 1 | 23117527440 | $5.48 | Shop at ECS Tuning | ||||
| 15 | Cover lid | D=15MM | 4 | 07119937228 | $1.02 | Shop at ECS Tuning | ||||
| 15 | Cover lid | D=17MM | 3 | 07119937248 | $0.44 | Shop at ECS Tuning | ||||
| 16 | Bushing | 3 | 23117510946 | $11.25 | Shop at ECS Tuning | |||||
| 17 | Sealing Cover | 1 | 23127527439 | $4.40 | Shop at ECS Tuning | |||||
| 18 | Gasket ring | A12X15,5 AL | 1 | 07119963130 | $0.09 | Shop at ECS Tuning | ||||
| 19 | Backup light switch | M12X1,5 | 1 | 23141354071 | $16.78 | Shop at ECS Tuning | ||||
| 21 | Screw plug | M24X1,5 | 1 | 23117546876 | $12.63 | Shop at ECS Tuning | ||||
| 22 | Hex nut | M12 | 4 | 07119922139 | $2.09 | ENDED | Shop at ECS Tuning | |||
| 23 | Washer | A13/HV-ZNS | 4 | 07/1991 | 07119901766 | $0.30 | ENDED | Shop at ECS Tuning | ||
| 23 | Washer | 12-300 HV-ZNS3 | 4 | 07119904119 | $0.25 | Shop at ECS Tuning | ||||
| 24 | O-ring | 45X2 | 1 | 23111228313 | $6.16 | Shop at ECS Tuning |
